"Sheer" Handrail Bracket BA503
- Select Cap Face
- Select Glass Thickness
- Select Mounting Surface
- Quantity
Product Details
Specifications

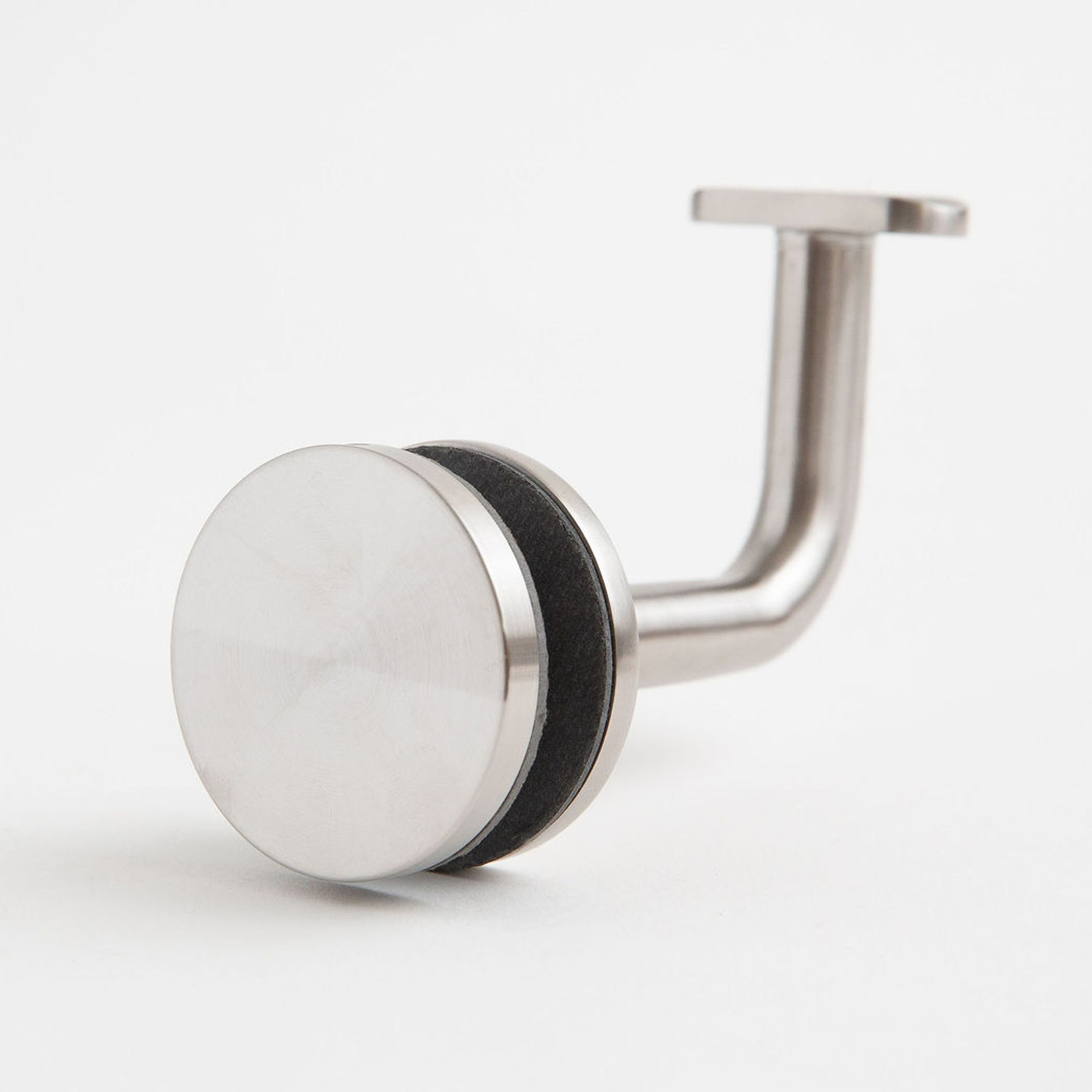

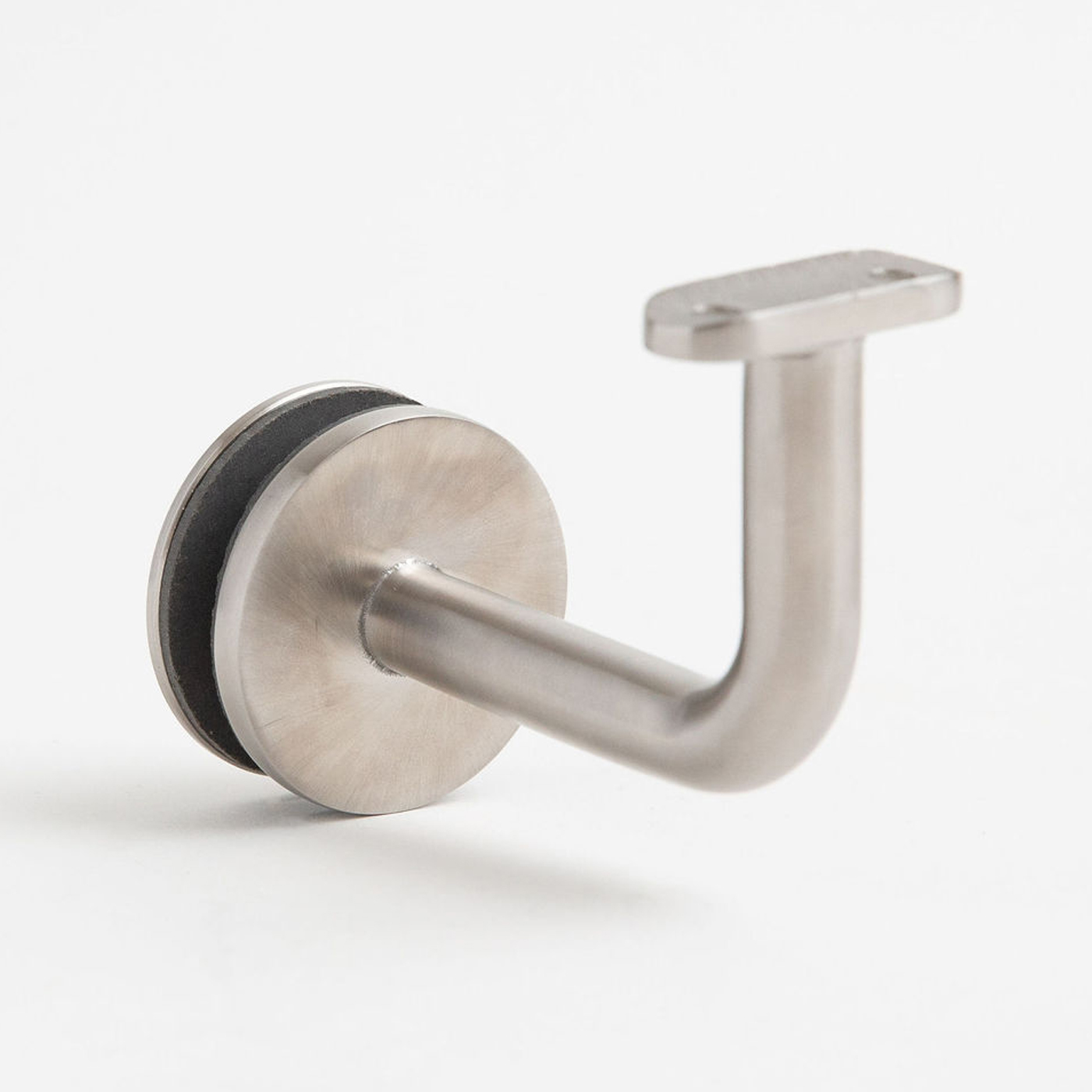

Strength + Beauty + Engineering Smarts = Perfect Handrail Bracket.
Entirely driven by an architect’s request (and designed by the Stella team), the Sheer handrail is one of the most slender handrail supports on the market with no flange or flare at the bracket’s connection point.
It’s not just good looks with this piece…
You can rely on its strength and safety (it’s designed, engineered, and tested to surpass guard loading requirements) as this bracket is cast using Duplex stainless steel, a material more than twice the strength of stainless steel.
NOTE: Pricing is for part as shown with no modifications.
Read carefully - an almost complete package...
- See all product drawings, technical info and install guides here
- Or a quick guide is below:

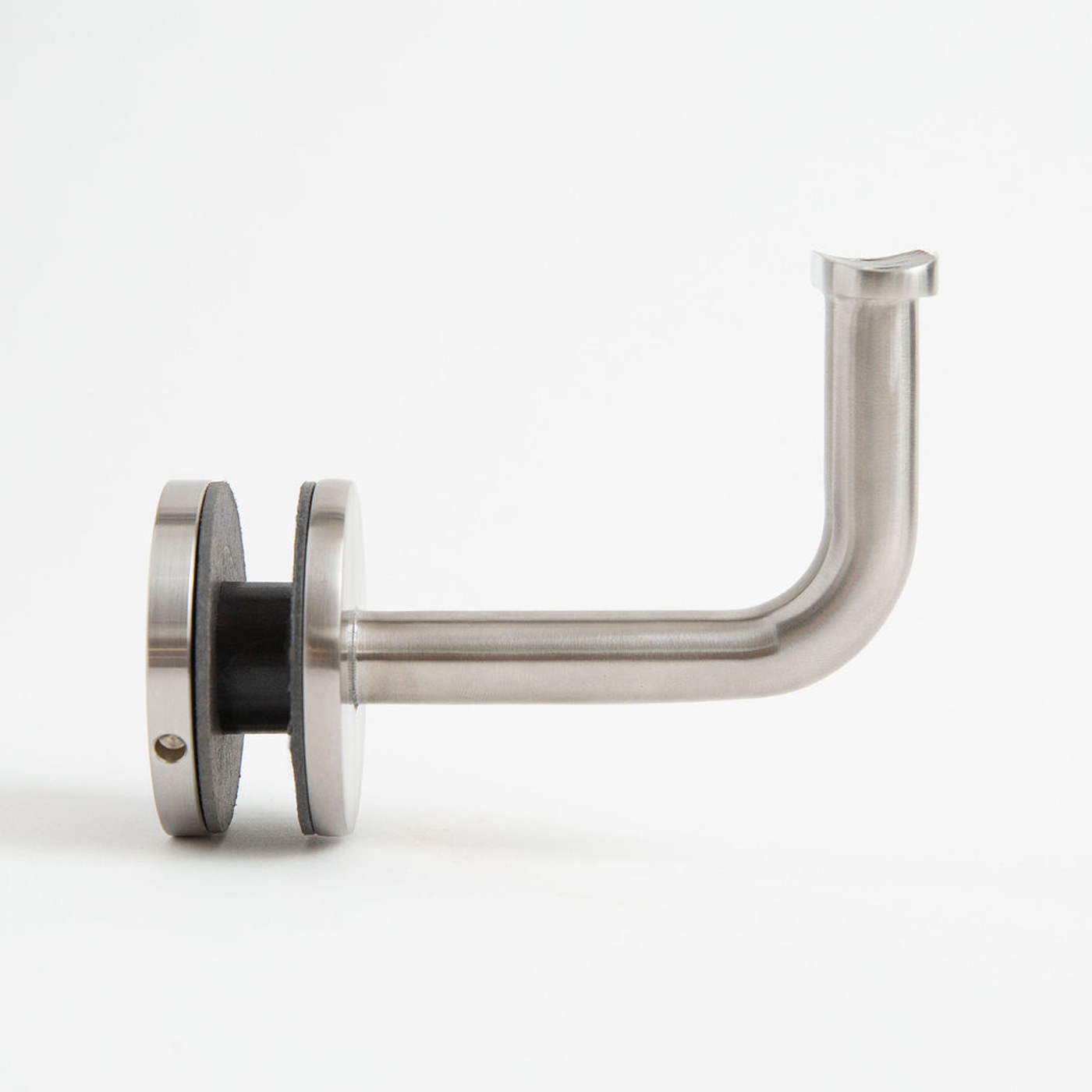

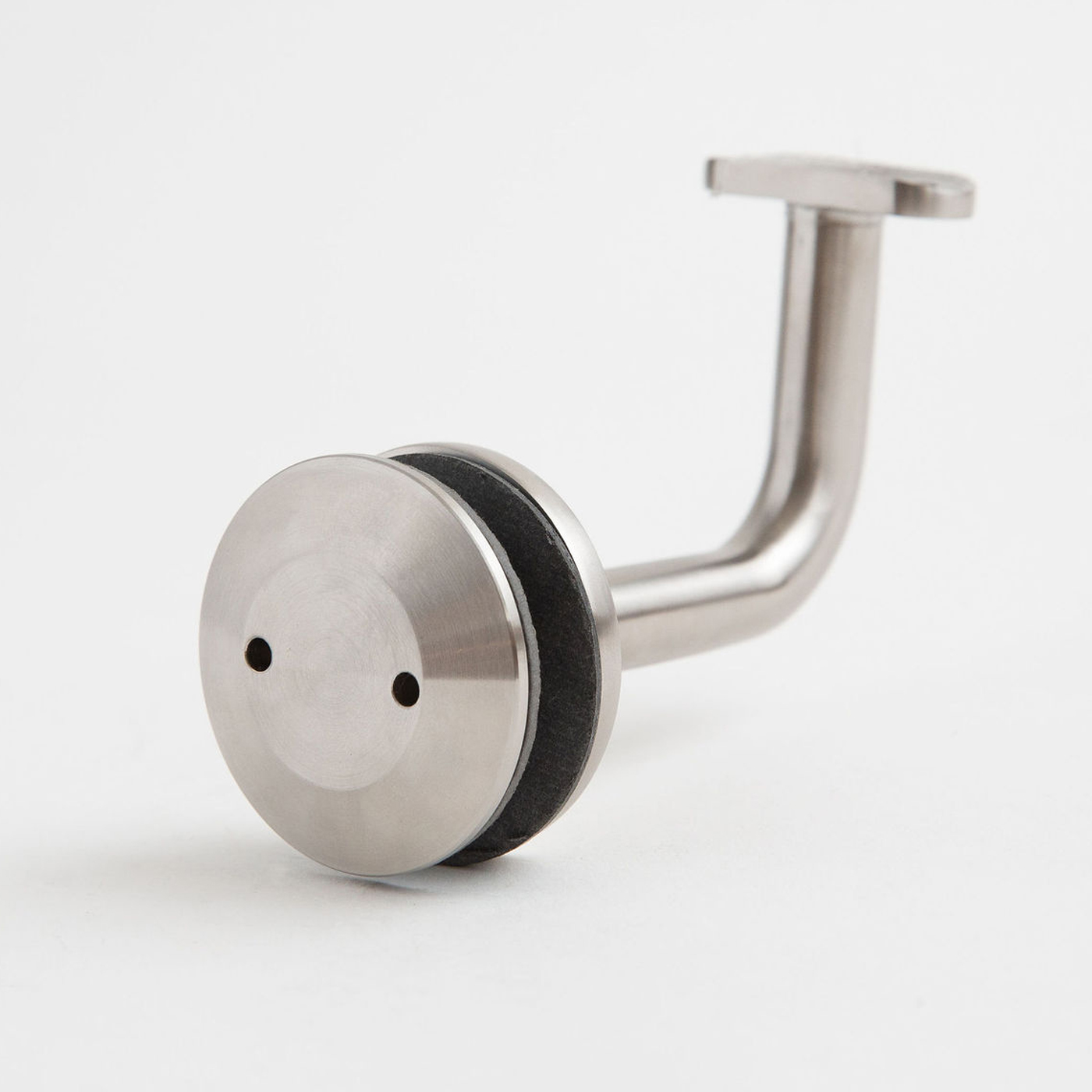

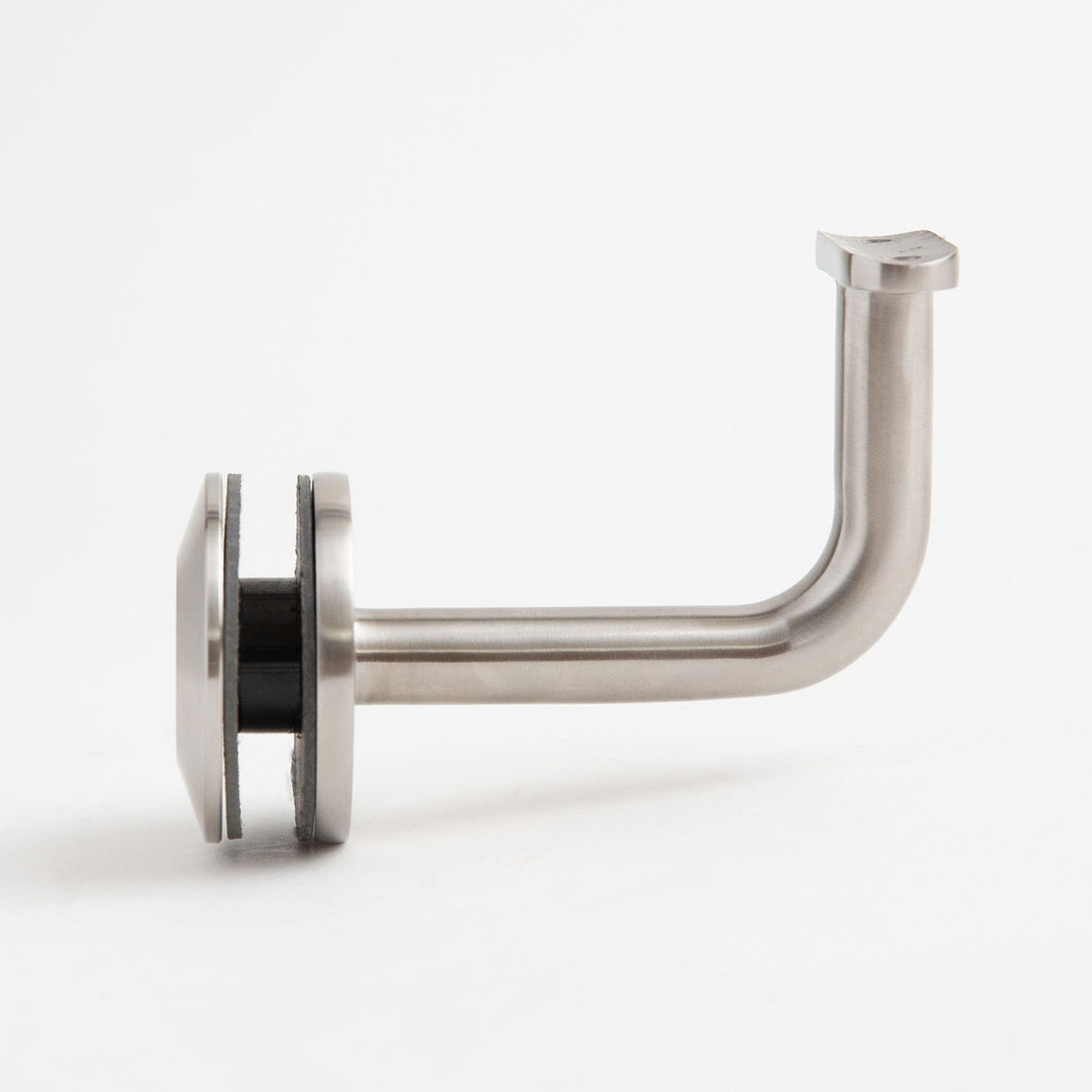

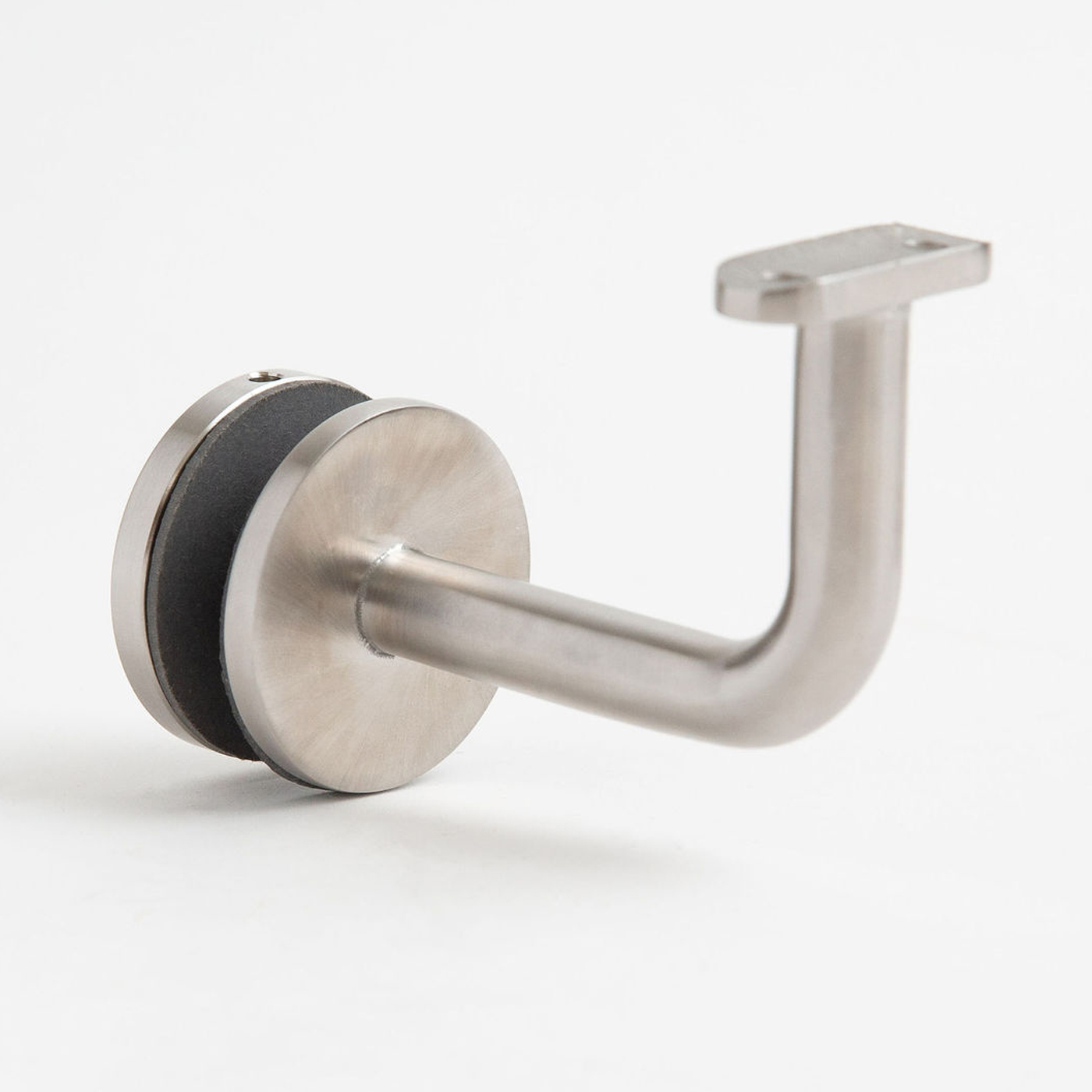

- Glass Mount Option - we supply this bracket complete with gaskets and ferrule bushing and the specialized tool you need to tighten the front face during install (see tools Here). But due the huge variety of options - we don't include #10 rail screws.
- For Wall and Post-Mount Options - #10 rail screws and #10 mounting screws (to wall or post) are excluded.
Suggested Applications
- Suggested ApplicationsHandrails and Balustrades
- Codes this Bracket Meets?National Building Code of Canada 2015, Div B, Section 3.4.5.6
Key Dimensions
- Cap Face Diameter (when mounting to glass)50mm [2"]
- Glass Thickness (when mounting to glass)Two Options - 12-16mm[1/2"-5/8"] OR 17-19mm[5/8"-3/4"]
- Max. Tested Loads & Other Key DimensionsRefer to product pdf
(For Glass Mount) Recommended Diameter Hole In Glass
- Minimum22.2mm [7/8"]
- Recommended24.5mm [1"]
- Maximum28.6mm [11/8"]
Materials & Finish
- MaterialsDuplex Stainless Steel Bracket with Stainless Steel Grade 316 Front Face Plate
- FinishBrushed - No. 4. Satin
