PC2110 Non-thermally Broken Perimeter Channel

PC2110 Non-Thermally Broken Perimeter Channel – Dry-Glazed Interior

Framing for Architects & Glaziers

High-Performance Aluminum Channel for Structural Glass Walls – Pre-Engineered for Labor Savings

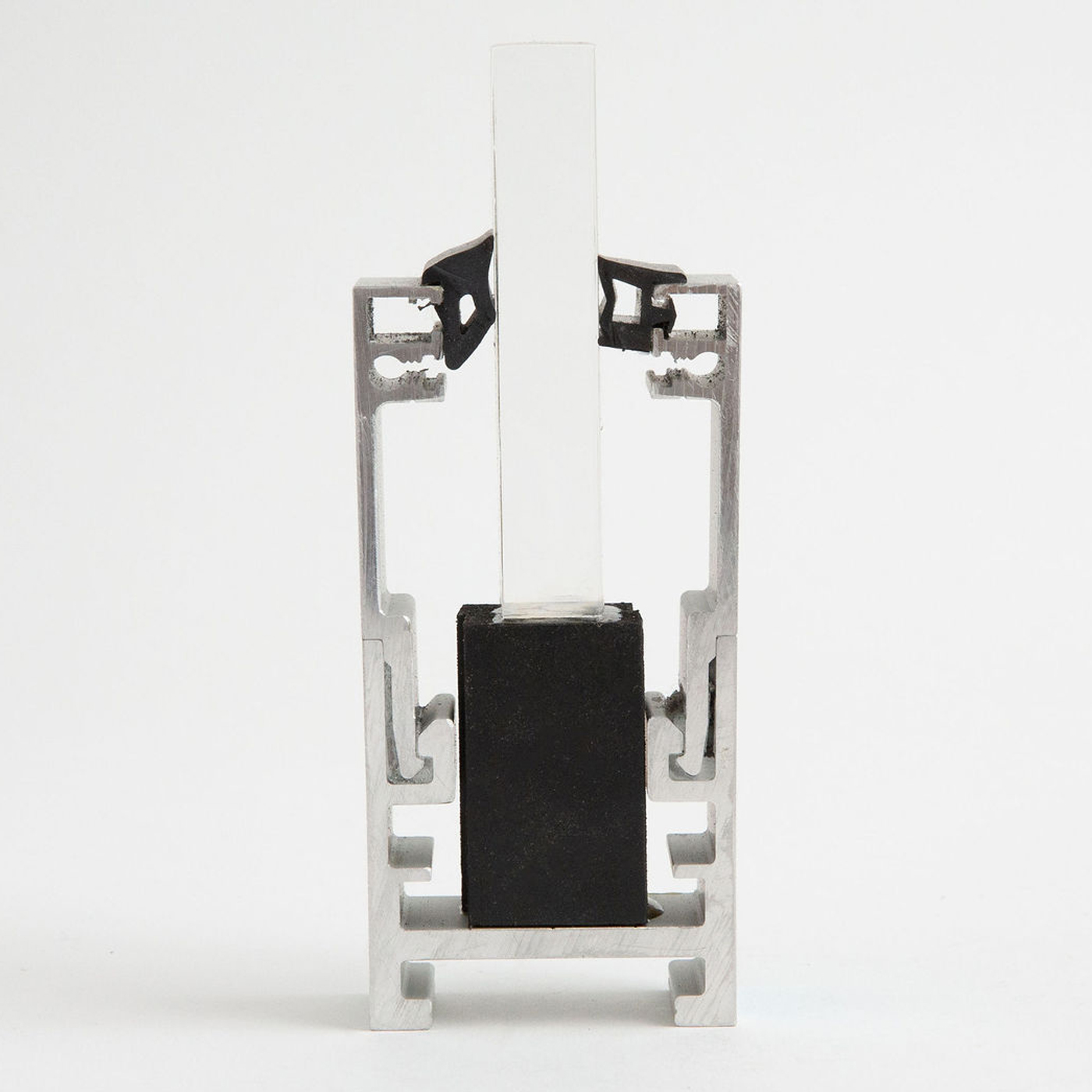

Stella’s PC2110 perimeter channel is a non-thermally broken glazing system designed for interior glass applications, from office partitions to retail storefronts. Trusted by architects for clean detailing and glaziers for rapid installs, it combines dry-glazed efficiency with 6063-T5 aluminum durability.

✅ In Stock & Ready to Ship – Shorter lead times vs. custom-fabricated channels
✅ Fits 10–21.5mm (3/8"–7/8") Glass – Adjustable dry-fit gaskets for tolerance flexibility
✅ Labour-Saving Design – Removable glazing clips eliminate silicone curing delays
✅ Architect-Grade Finishes – Anodized, powder-coated, or stainless steel cladding
✅ LEED-Compliant – 25–90% recycled aluminum content

Key Benefits for Architects & Glaziers

1. Speed Up Installations

• Dry-glazed system – No wet silicone; gaskets accommodate glass thickness variations.

• Removable glazing clips (50mm height) – Position glass first, then secure (ideal for replacements).

• Pre-drilled drainage slots – Optional for weather performance in hybrid applications.

2. Flexible Mounting & Customization

• Vertical, face-mounted, or flush to finished surfaces (concrete/steel/wood).

• Ledge brackets available – Replace spider fittings at edges for stacked glass.

• Project-specific finishes – Match to design intent (Duranar paint-matching available).

3. Structural Integrity & Compliance

• 6063-T5 aluminum channel – High hardness for structural glass walls.

• EPDM gaskets (60/70 durometer) – Resilient sealing without adhesives.

• Meets LEED standards – Sustainable material sourcing for green building projects.

Technical Specifications

• Section: 08 88 00 (Special Function Glazing)

• Materials:

  • Channel: 6063-T5 Aluminum

  • Gaskets: EPDM (interior: 60 durometer; exterior: 70 durometer)

  • Setting Block: Acetal Delrin

• Warranty: 2-year limited (extendable for projects)

Ideal for These Applications

• Interior glass walls (non point-supported)

• Retail storefronts & corporate office partitions

• Point-supported systems (compatible but not required)

Order Options

• DIY Kits: 12ft raw lengths (cut/drill on-site)

• Pre-Fabricated: Cut-to-length with pre-drilled holes + hardware included

Finish Choices: Anodized (clear/black)

📌 Architects: Specify Stella’s PC2110 for clean joints and labour-efficient glazing. (Drawings click here)
🔧 Glaziers: Reduce on-site hours with clip-in-place glass mounting.
