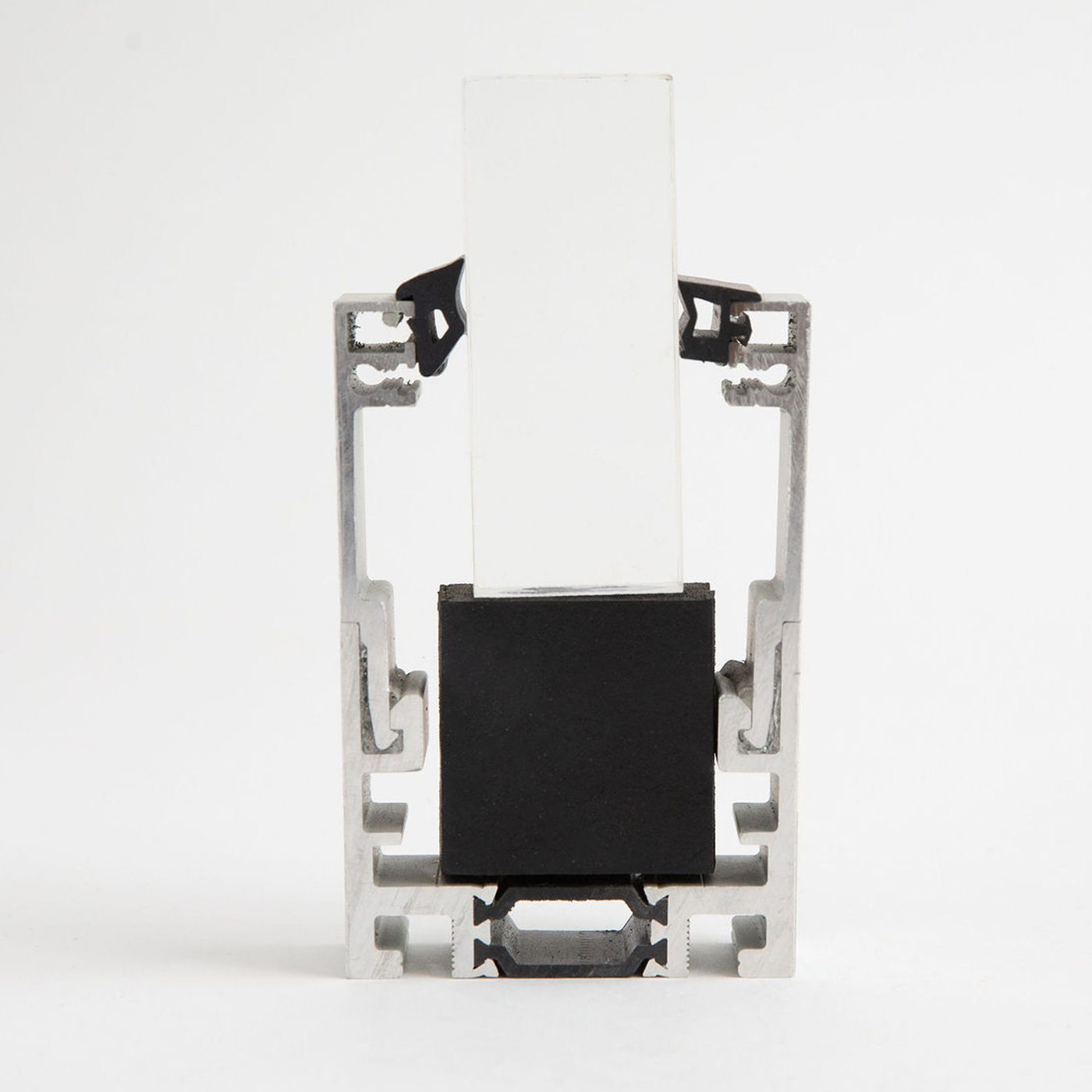

PC3710 Thermally Broken Perimeter Channel

PC3710 – Thermally Broken Perimeter Channel
Designed to deliver strength, performance, and energy efficiency, the PC3710 is Stella’s go-to perimeter channel for exterior glazing. Built with a thermal break, this model improves building envelope performance while supporting large-format glass panels.

Crafted from 6063-T5 aluminum and engineered for glass thicknesses between 25.5 to 37.5mm (1" to 1 1/2"), the PC3710 features a dry-glazed system with variable EPDM gaskets and a removable 50mm glazing clip. It allows for fast installation, easy panel replacement, and excellent accommodation of in-plane movement—without the need for silicone.

This channel mounts vertically at the top, base, or flush with finished surfaces. It's suitable for concrete, steel, or wood substrates, and includes drainage slots for weather performance. The thermal break helps reduce condensation, improve insulation, and support compliance with modern energy codes.

Offered in mill, anodized, painted, powder-coated, or brushed stainless steel cladding finishes, this perimeter channel is perfect for curtain walls, point-supported glass systems, and any architectural application that demands performance with polish.

Key Features:

• ✅ Thermally Broken: Boosts energy efficiency in exterior glazing

• 📏 Glass Thickness Compatibility: 25.5–37.5mm (1" to 1 1/2")

• 🧩 Dry-Glazed System: No silicone; allows for building movement

• 🔧 Mounting Flexibility: Vertical, base, or flush mount on various substrates

• 🌱 Sustainable: Made with 25% pre- and 90% post-consumer recycled aluminum

• 🎨 Finish Options: Mill, anodized, painted, powder-coated, stainless steel

• 🛠️ Removable Glazing Clip: Simplifies install, maintenance, and glass replacement

• 🛡️ Warranty: 2-Year Limited (project-specific available)

Division: 08 88 00 – Special Function Glazing
