S20 Spider SS201FT

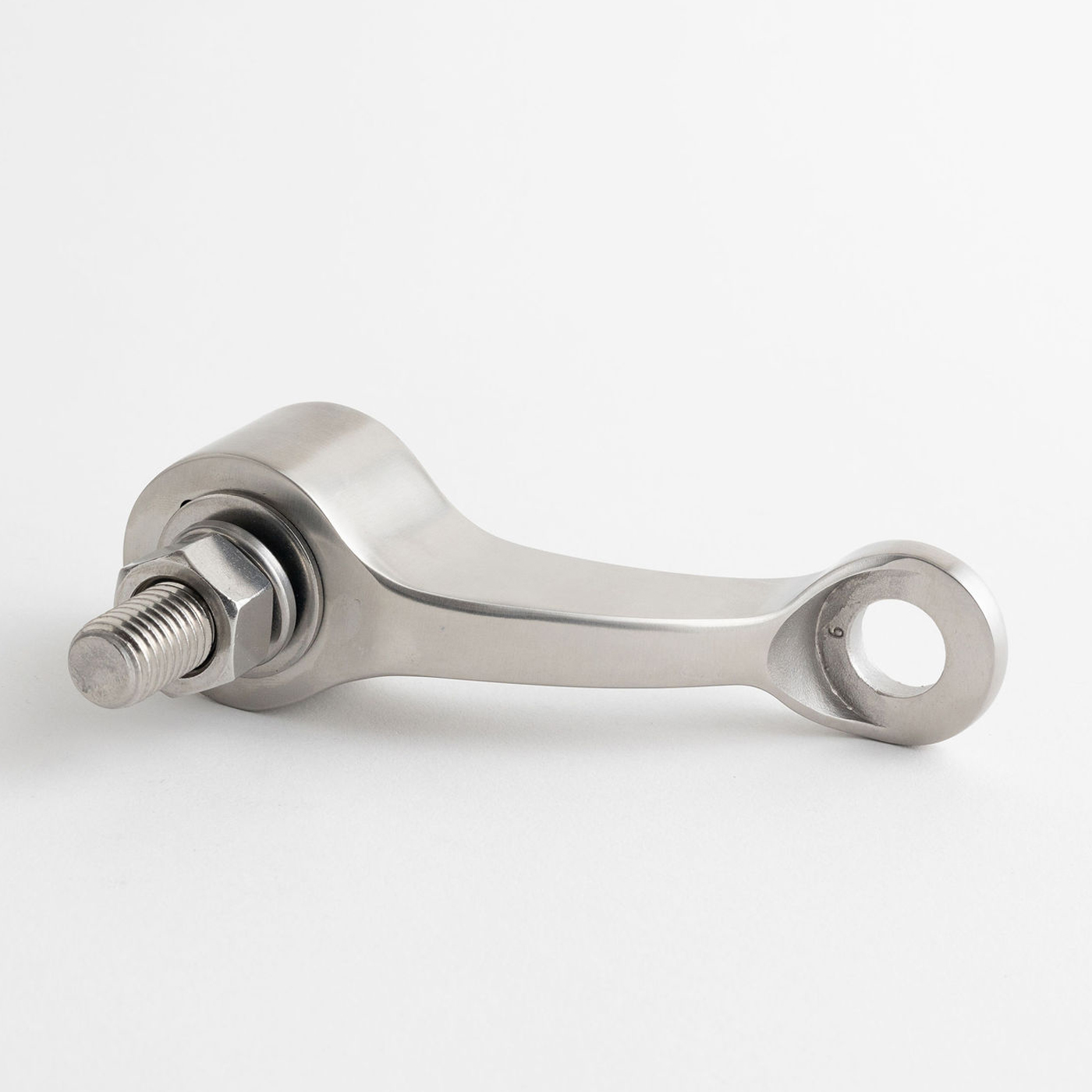

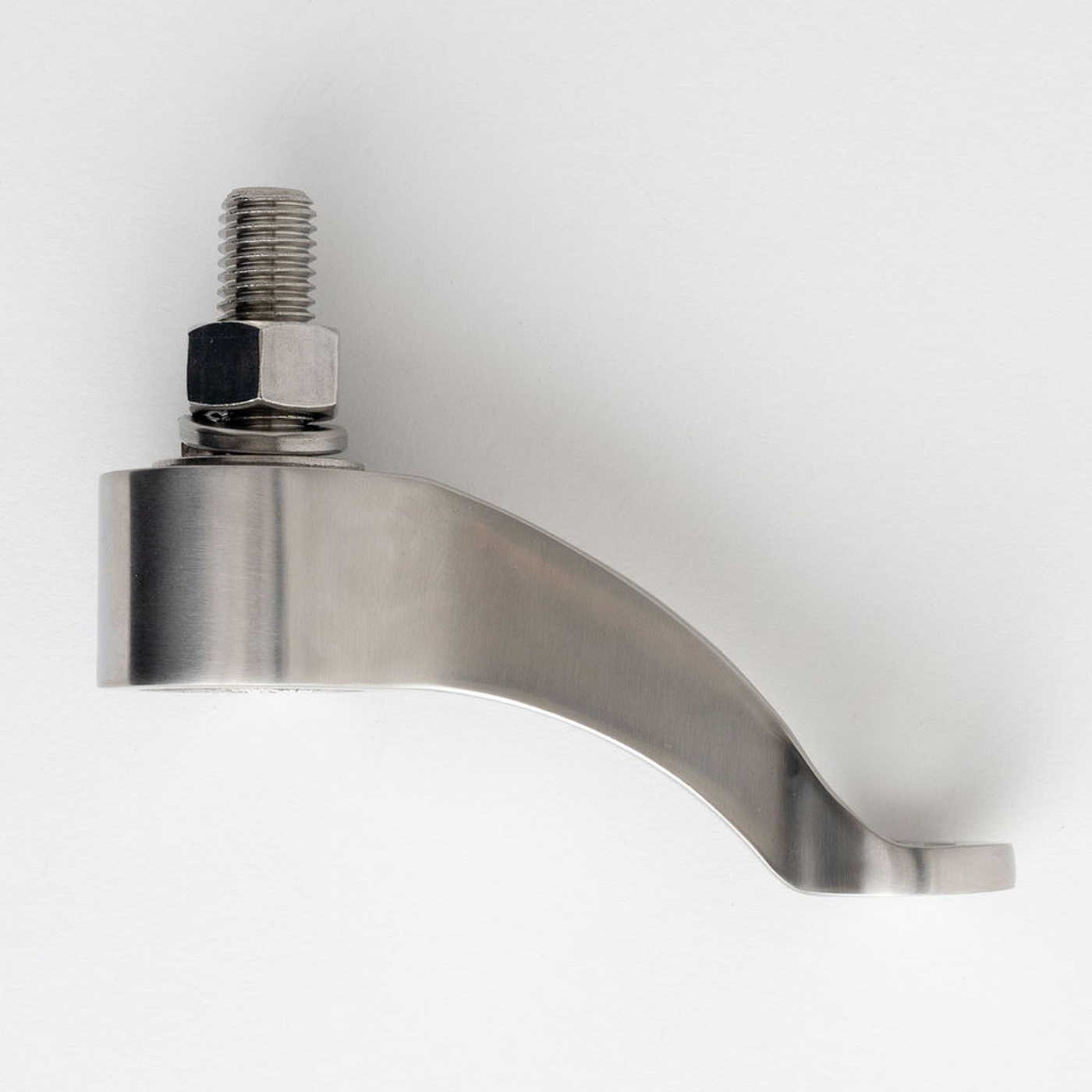

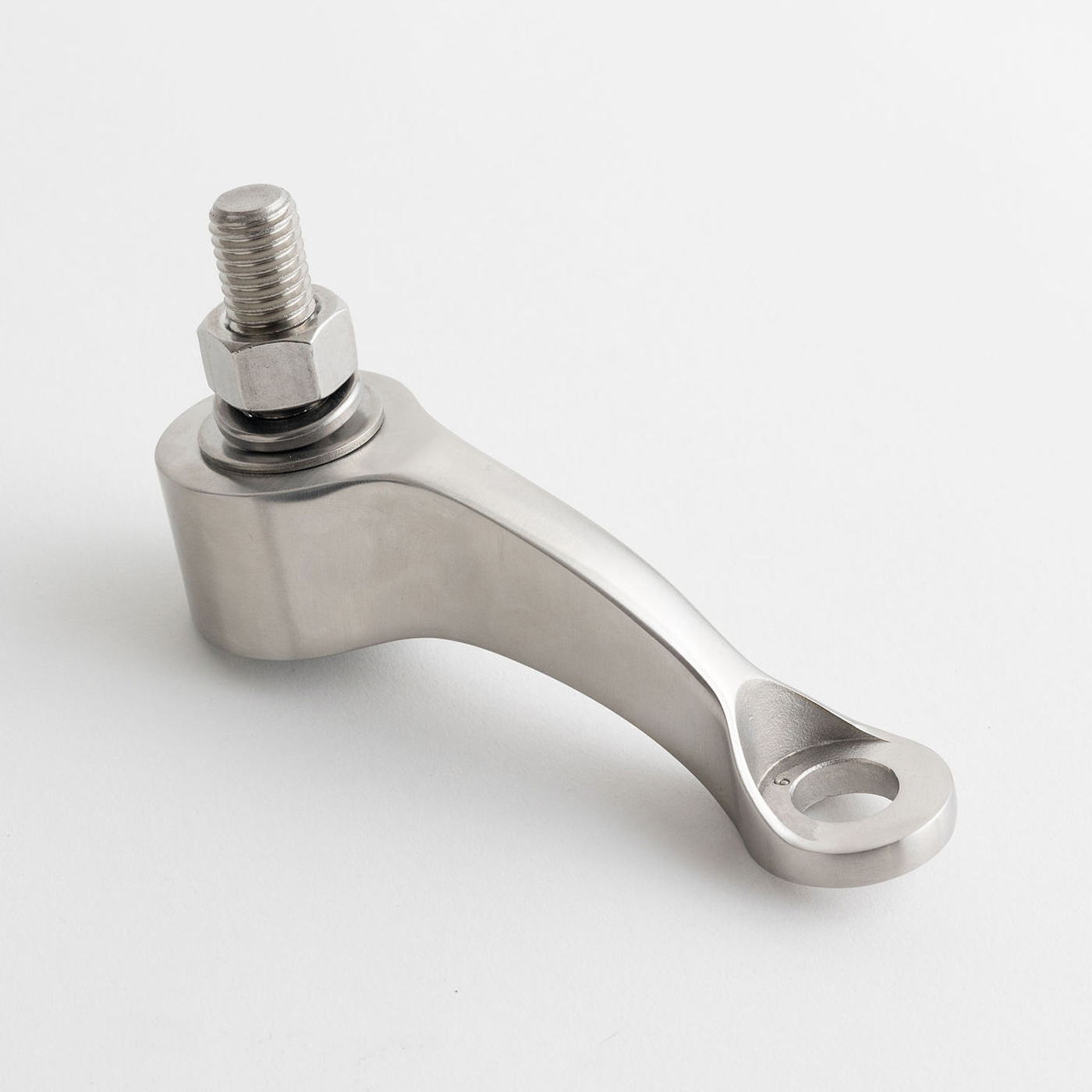

Heavy-Duty Single Arm Spider (Face-Mount) – Model SS201FTNHH6S013

Where refined design meets robust performance.

Stella’s Heavy-Duty Single Arm Spider from our Signature Spider Series is a top choice for architects, glaziers, and general contractors seeking hardware that merges elegant design with engineering-grade durability. Whether used in glass canopies, lobby walls, or vestibules, this spider delivers beauty without compromising strength.

Why It's a Best-Seller

This is one of our best-selling spider fittings, and for good reason. Its front-mount design simplifies installation, while its first-of-its-kind ±6mm [1/4”] in/out adjustability ensures a flush, aligned fit—even on uneven surfaces. That means fewer on-site headaches and a cleaner, more precise finish every time.

Key Features

• ✅ Architectural Elegance
  Our signature curved arm design blends seamlessly into any structure, allowing the hardware to complement, not compete with, the architectural vision.

• 💪 Tested Strength
  Handles lateral loads up to 1.5kN and tensile loads up to 3.7kN—ideal for high-performance structural glass applications.

• 🧩 On-Site Adjustability
  Comes with optional custom spacers and ±6mm adjustability, making it easy to accommodate variable site conditions and achieve perfect alignment.

• 🔧 Installation-Ready
  Supplied with an M16 hex bolt, washers, and spring washer for secure mounting to steel, concrete, or wood substructures (6–13mm thickness).

• 🔄 Flexible Glass Attachment
  Choose from our compatible articulating glass bolts (sold separately):

  • AB502T – Light-Duty

  • AB602T – Medium-Duty

  • AB702T – Heavy-Duty

• 🌿 Sustainable Choice
  Made from Grade 316 stainless steel with over 45% pre- and 95% post-consumer recycled content. Ideal for LEED-qualified projects.

• 🖌️ Finish
  Brushed No. 4 (320 grit). Looking for something custom? Contact our sales team for alternate finishes or configurations.

Specifications

• Mount Type: Face-Mount

• Mounting Substrates: Concrete, steel, or wood

• Mounting Thickness: 6–13mm

• Warranty: 2-Year Limited (project-specific options available)

• Shipping: Lead time varies by location

• SKU: 1187275

• Division: 08 88 00 – Special Function Glazing

Want to specify this in your next project? Download our Product Data Sheet or reach out to our team for CAD and Revit support. (Click here)
