S20 Spider SS201ST - Side Mounted

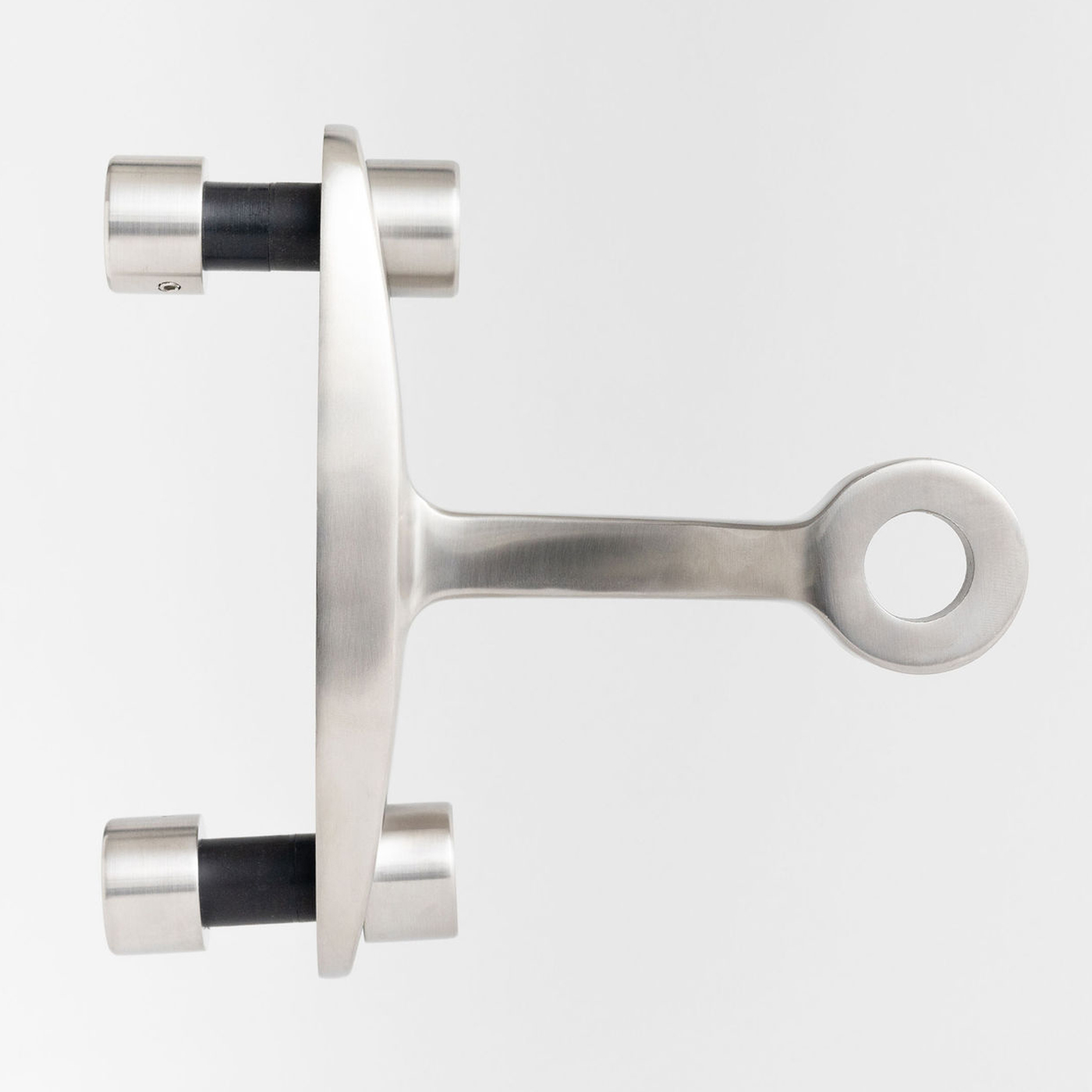

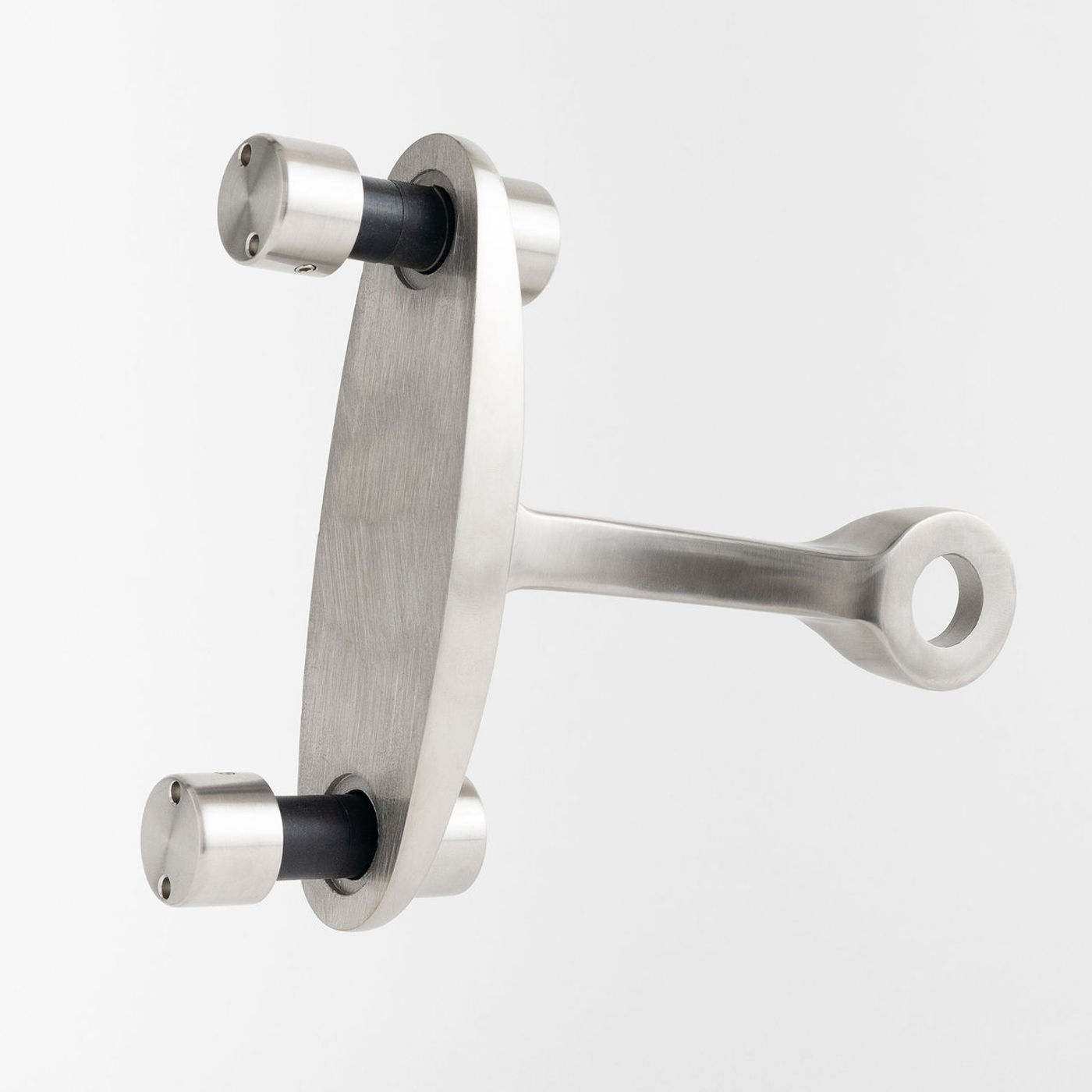

🔩 Heavy-Duty Single Arm Spider (Side-Mount) – Model SS201STNMH6S013

Industrial strength meets architectural precision.

From Stella’s Signature Spider Series comes the SS201STNMH6S013, a heavy-duty one-arm side-mount spider fitting engineered for structural integrity and sleek presentation. It is perfect for curtain walls, point-supported facades, or architectural glass features that demand both style and substance.

Why It's a Specifier Favorite

Side-mounted for simplified edge anchoring, this model provides powerful support for glass panels without overshadowing the design. With robust loading specs—1.5kN lateral and 3.7kN tensile—and a compact, minimalist profile, it's the go-to choice for projects that blend engineering excellence with modern aesthetics.

Key Features

✅ Streamlined Side-Mount Design
Ideal for mounting to the edges of structural frames—concrete, steel, or wood—when clean, uninterrupted glass spans are required.

💪 High Performance Under Pressure
Handles 1.5kN lateral and 3.7kN tensile loads per leg. For compression loads, select the appropriate Stella Glass Bolt to match your design specs.

🧱 Versatile Mounting Options
Supports substrates from 6mm to 13mm (1/4” to 1/2”) thick. Suitable for new construction and retrofit installations alike.

🌱 Sustainable Engineering
Crafted from Grade 316 stainless steel with over 45% pre- and 95% post-consumer recycled content. Designed for LEED-friendly building envelopes.

🖌️ Premium Finish
Brushed No. 4 (320 grit) stainless steel for a smooth, clean aesthetic. Custom finishes available upon request.

Technical Specifications

• Mount Type: Side-Mount

• Material: Grade 316 stainless steel

• Substrate Compatibility: Concrete, steel, or wood

• Mounting Thickness: 6–13mm

• Loading Capacity: 1.5kN lateral | 3.7kN tensile

• LEED Compliance: Yes

• Warranty: 2-Year Limited (project-specific available)

• Division: 08 88 00 – Special Function Glazing

Supplied Components:
Includes M12 x 40mm studs (x2) and cylindrical end caps (x4). Requires compatible Stella Glass Bolts (sold separately).

📐 Want to include this spider in your next project?
Contact our team for CAD drawings, Revit families, or custom mounting options.
