S20 Spider SS202FT

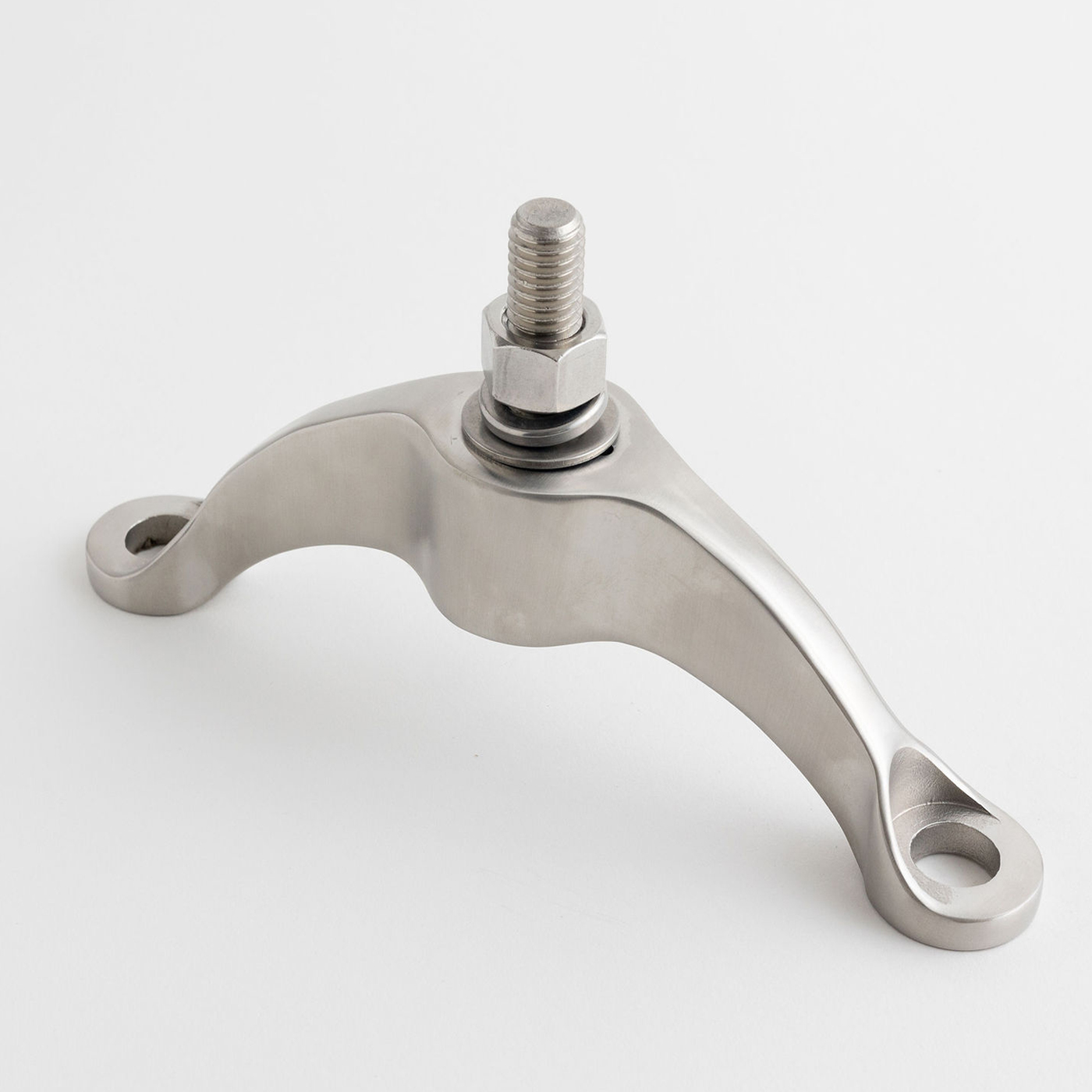

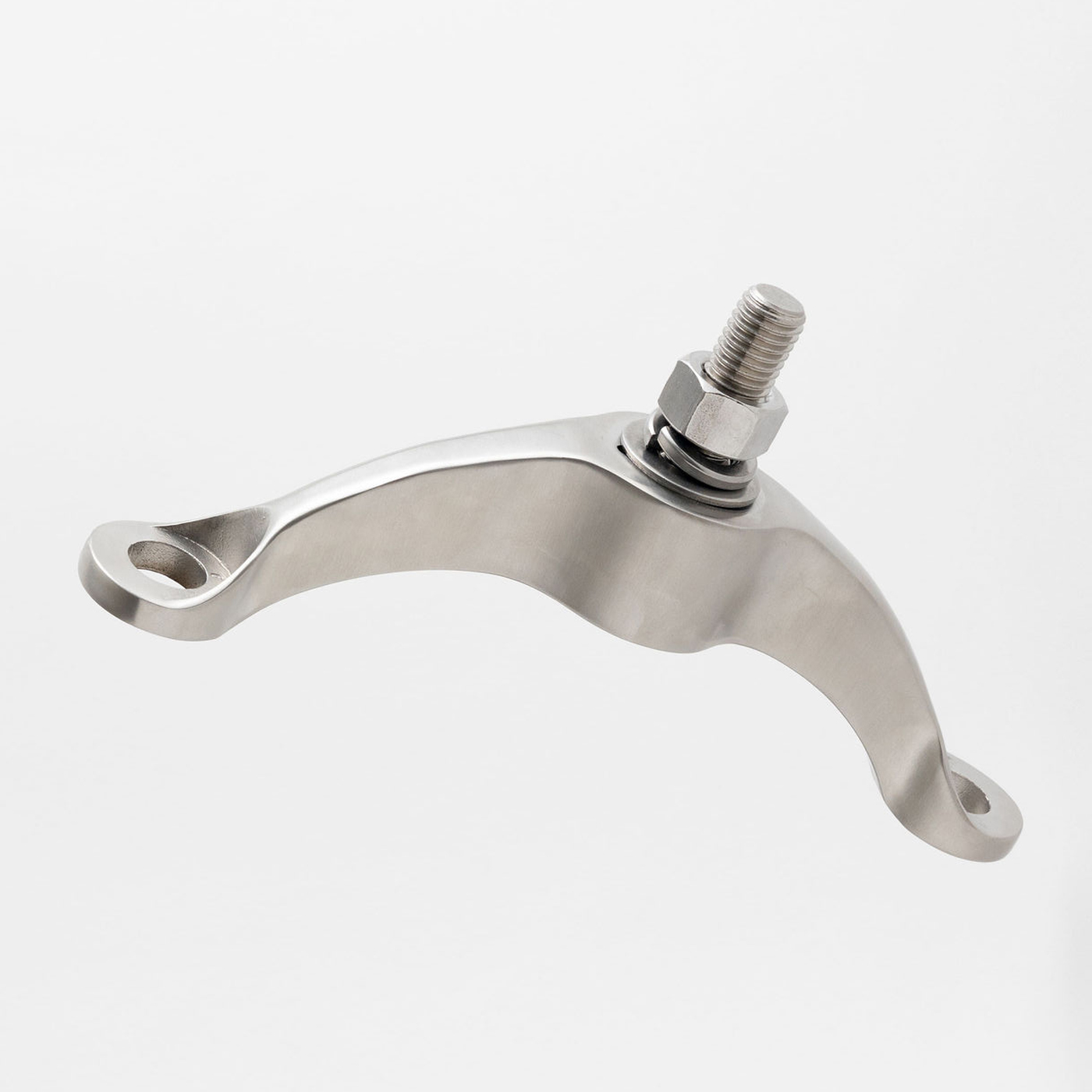

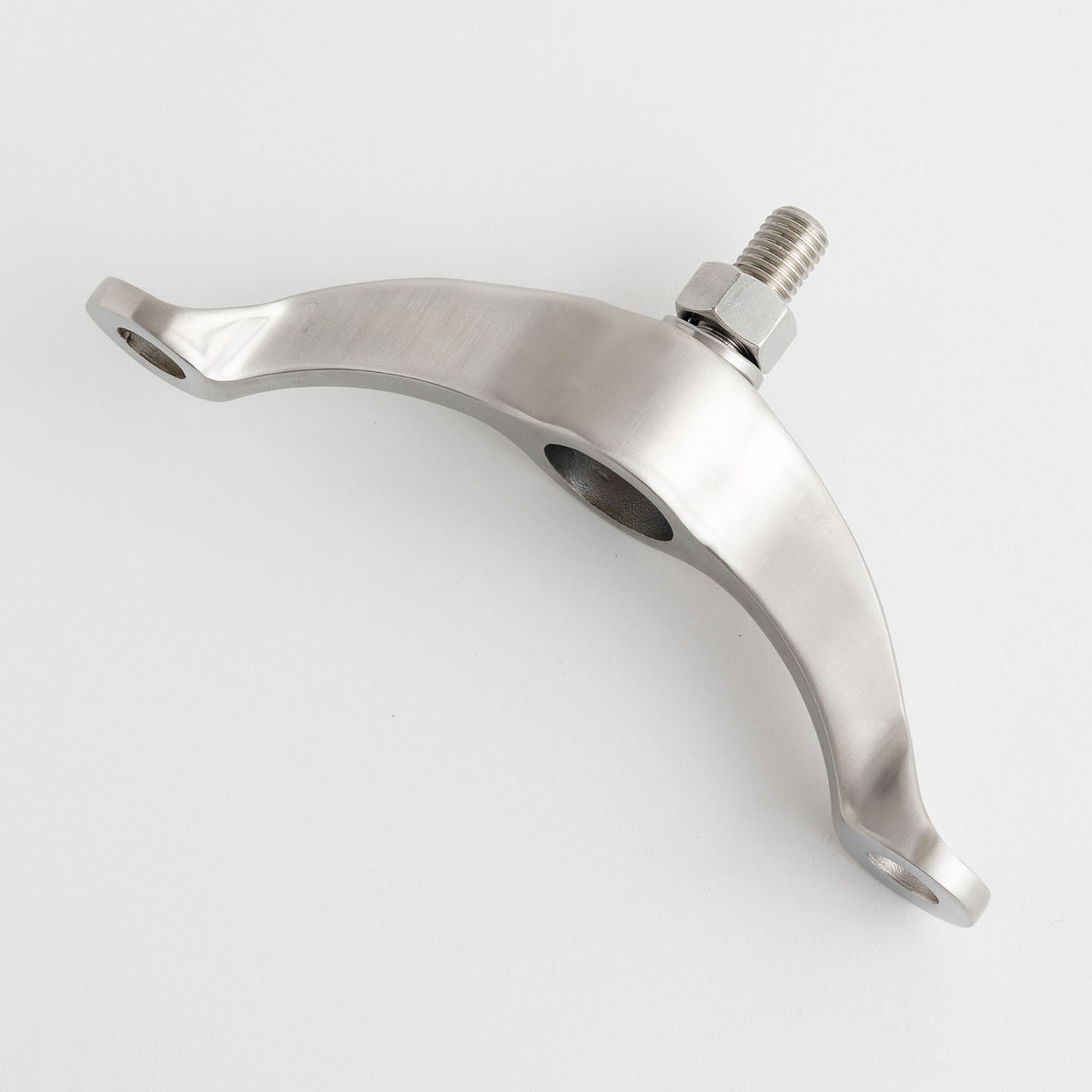

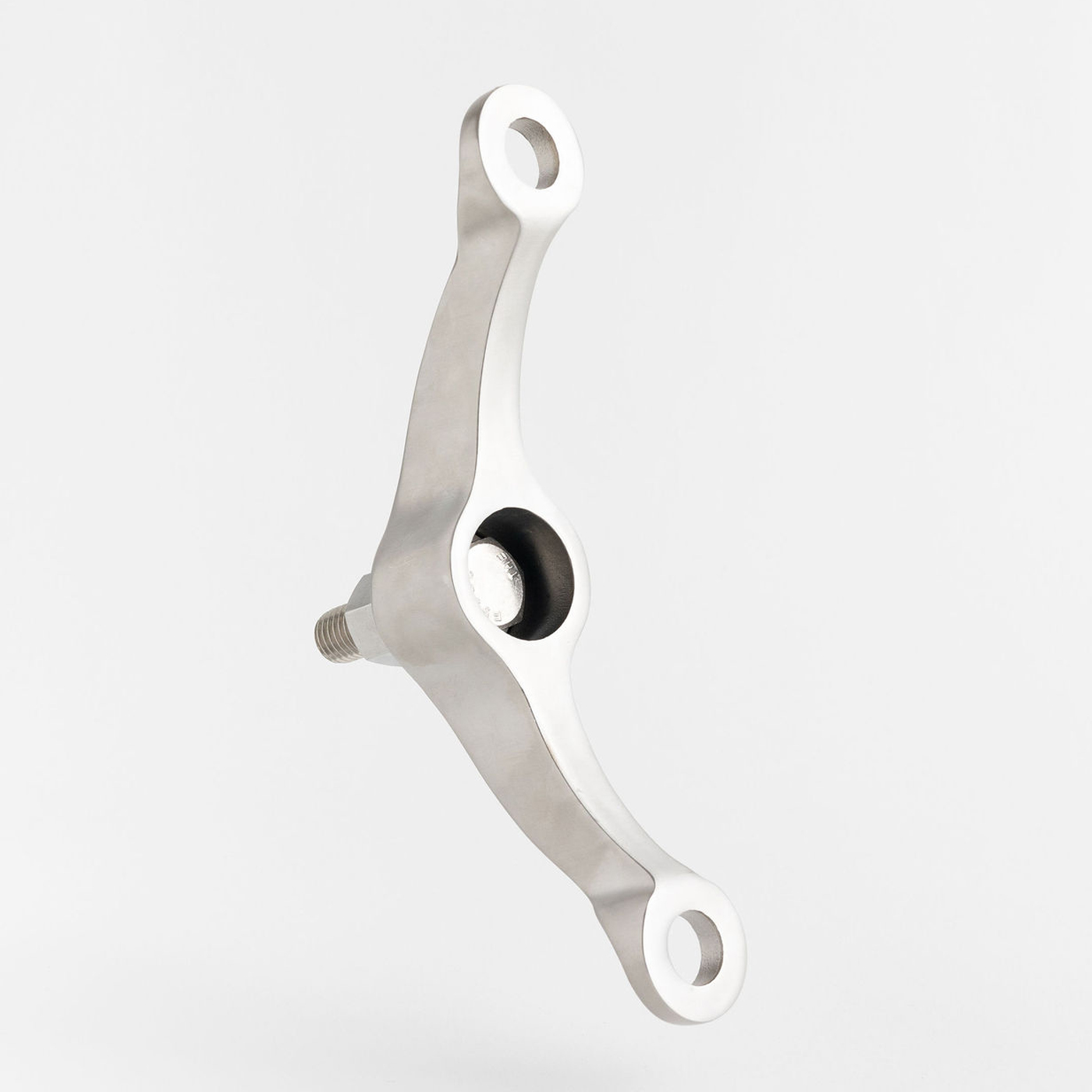

SS202FTNHH6S013 – Heavy-Duty Two Arm (Face-Mount) Spider

Where architectural elegance meets load-tested durability. Stella’s SS202FTNHH6S013 spider fitting is designed with a sleek organic arm profile that visually complements the support structure—ideal for installations within public view such as canopies, lobbies, and glass partitions.

Crafted from corrosion-resistant Grade 316 stainless steel and finished in brushed No. 4 (320 grit), this face-mounted fitting handles 1.5kN lateral and 3.7kN tensile loads per leg. It mounts directly to concrete, steel, or wood substrates ranging from 6 to 13mm thick and includes an M16 hex bolt with washers and spring washer for secure anchoring.

For glass attachment, pair with any compatible Stella Articulating Glass Bolt (sold separately):
👉 AB502T (Light-Duty)
👉 AB602T (Medium-Duty)
👉 AB702T (Heavy-Duty)

Whether you're designing with strength, sustainability, or clean aesthetics in mind—this spider delivers.

Key Features:

• ✅ Elegant Curved Arms: Designed to complement—not distract from—the surrounding structure.

• 💪 High Load Capacity: 1.5kN lateral and 3.7kN tensile per leg.

• 🔧 Installation-Ready: Includes M16 hex bolt, washers (2), and spring washer.

• 🧱 Mount Compatibility: For concrete, steel, or wood (6–13mm thickness).

• 🌱 Sustainable Build: Over 45% pre- and 95% post-consumer recycled stainless steel.

• 🖌️ Refined Finish: Brushed No. 4 (320 grit).

• 🛠️ Optional Custom Spacers: Available to adjust height variations on site.

• 🛡️ Warranty: 2-Year Limited Warranty (project-specific available).

SKU: 1187273
Division: 08 88 00 – Special Function Glazing (Drawings click here)
Exclusively Distributed by: Stella Glass Hardware
