S20 Spider SS202SV - Side Mounted V

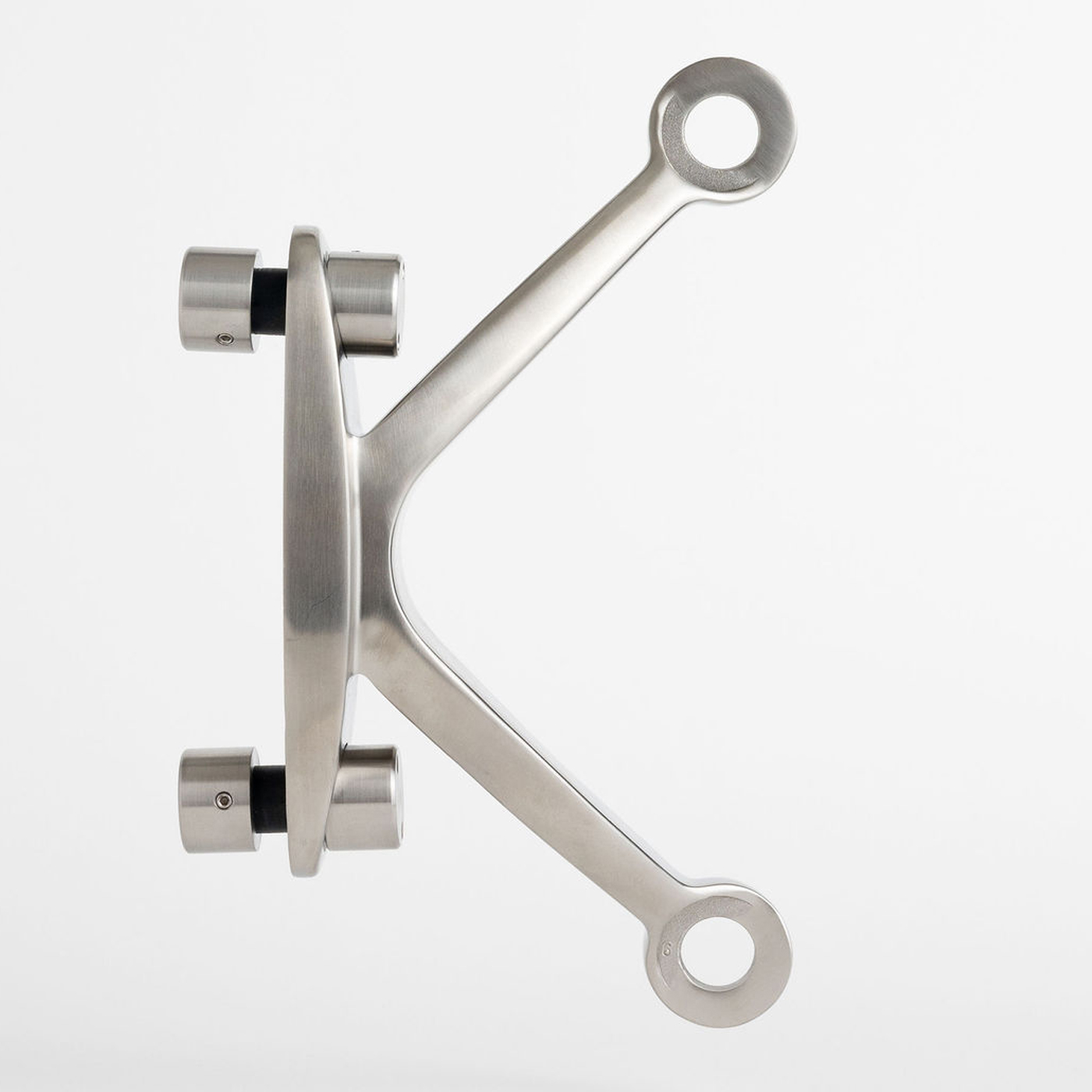

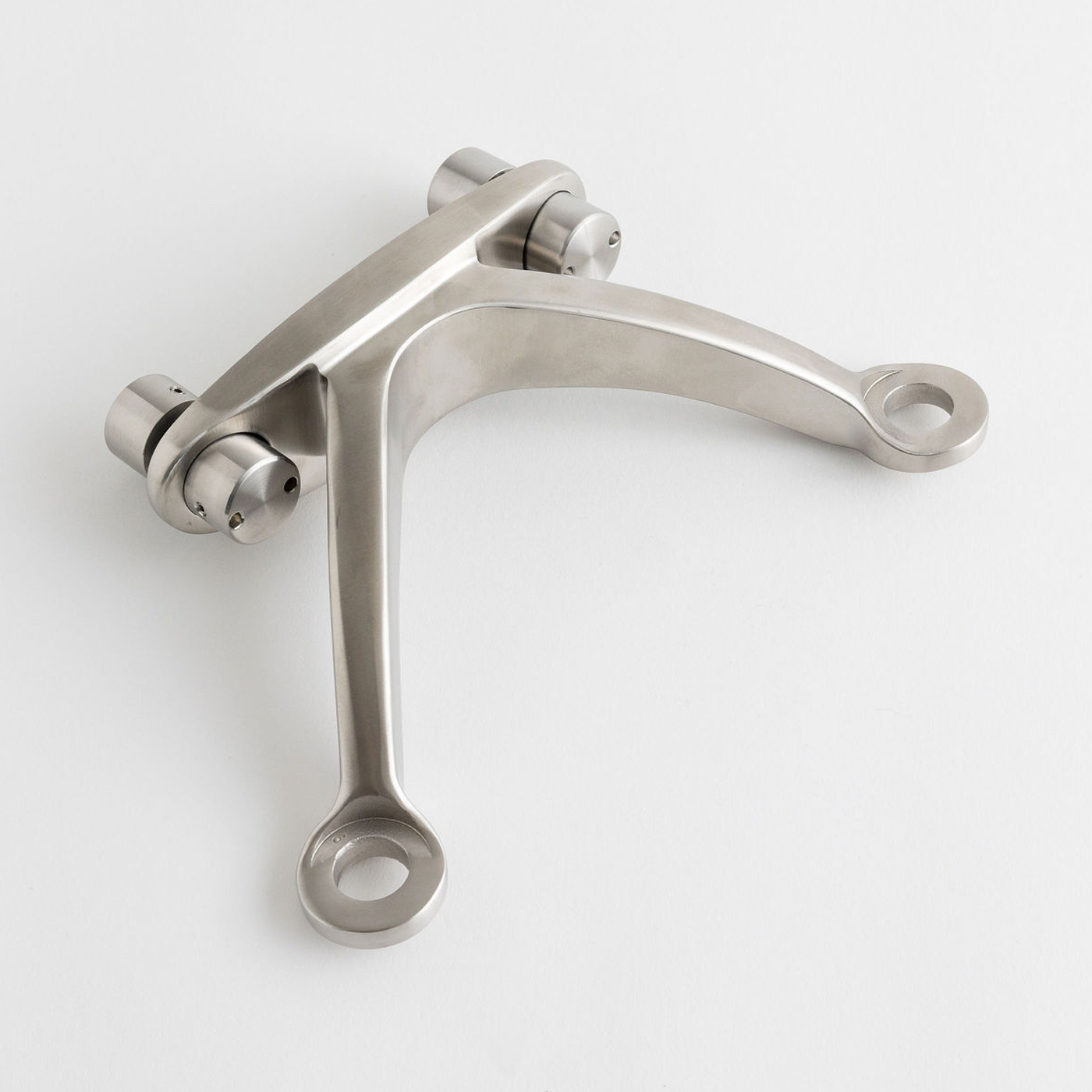

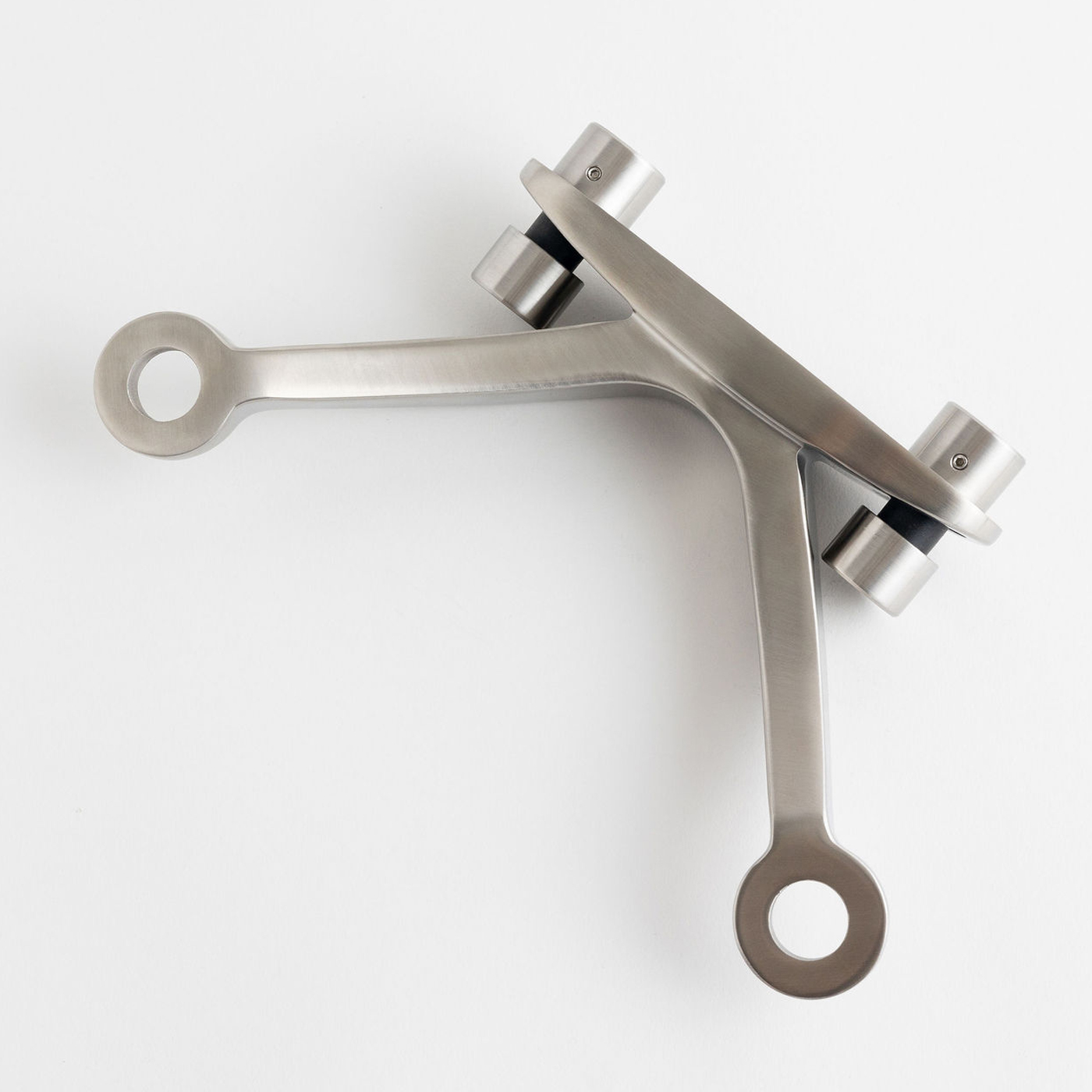

SS202SVHMH6S013 – Heavy-Duty Two Arm (Side-Mount) Spider
Where visual harmony meets structural reliability. Stella’s SS202SVHMH6S013 is a V-shaped, dual-arm side-mount spider fitting built for architectural glass systems that demand both performance and aesthetic discretion.

Engineered from Grade 316 stainless steel, this fitting is corrosion-resistant and finished in a sleek brushed No. 4 (320 grit). It mounts cleanly to concrete, steel, or wood substrates and includes M12 x 40mm studs (x2) with cylindrical end caps (x4)—a signature Stella detail for refined, flush-mounted applications.

Tested to handle 1.5kN lateral and 3.7kN tensile loads per leg, this spider is ideal for glass canopies, vestibules, and frameless interior walls. Pair with compatible Stella Articulating Glass Bolts (sold separately) based on panel size and load:

👉 AB502T (Light-Duty)
👉 AB602T (Medium-Duty)
👉 AB702T (Heavy-Duty)

Backed by sustainable manufacturing standards with over 45% pre- and 95% post-consumer recycled content, and a 2-year limited warranty, this model delivers elegant support without compromise.

Key Features:

• ✅ V-Shaped Dual-Arm Design for symmetrical load distribution

• 💪 High Load Performance: 1.5kN lateral / 3.7kN tensile per leg

• 🔩 Supplied Hardware: M12 studs (x2) + cylindrical end caps (x4)

• 🧱 Mounts to: Concrete, steel, or wood (6–13mm thick)

• 🌱 Sustainably Manufactured: LEED-compliant material sourcing

• 🛠️ Refined Connection Details: Clean visual finish with flush caps

• 🛡️ Warranty: 2-Year Limited (project-specific customization available)

SKU: 1187272
Division: 08 88 00 – Special Function Glazing
