S20 Spider SS204FT - Face Mounted

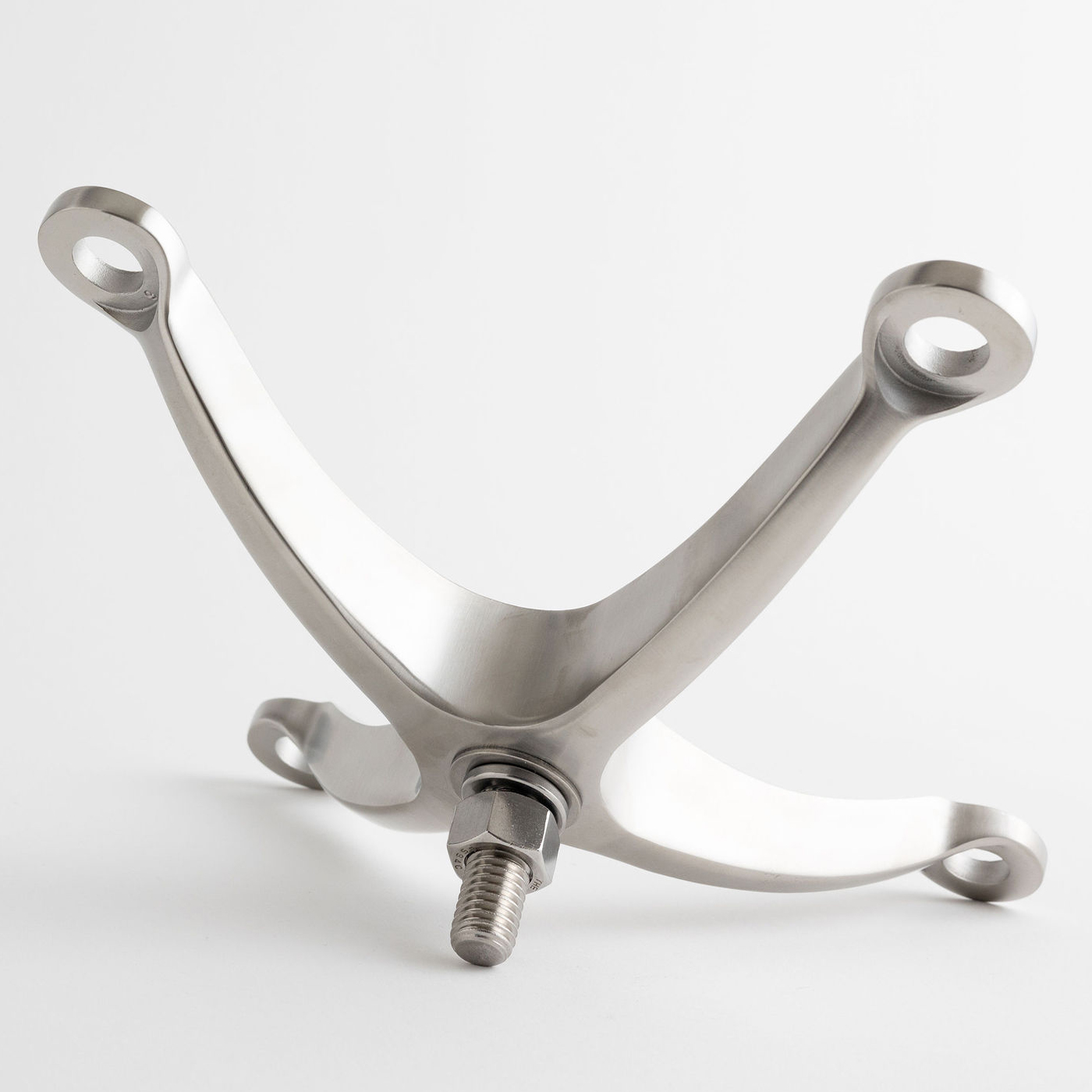

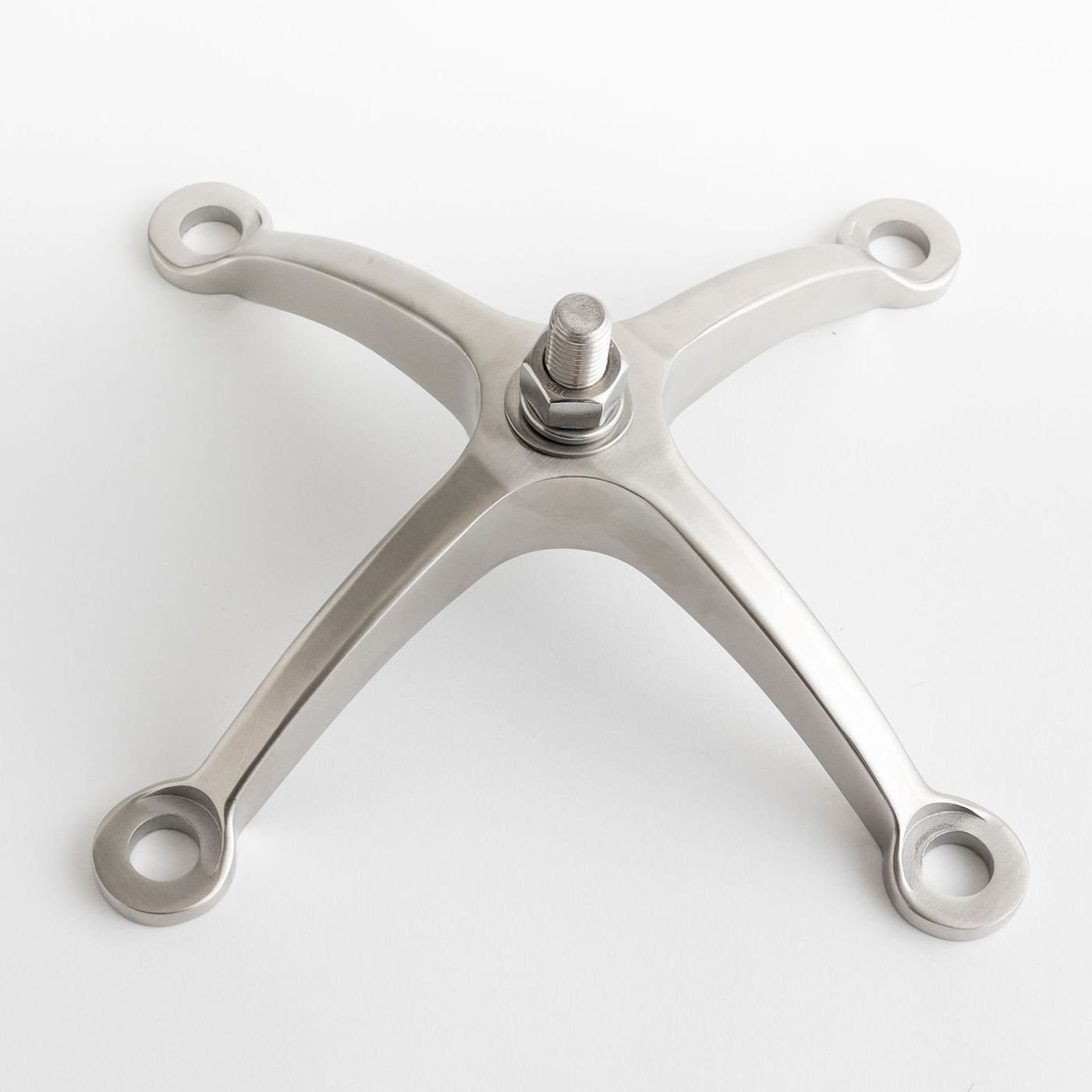

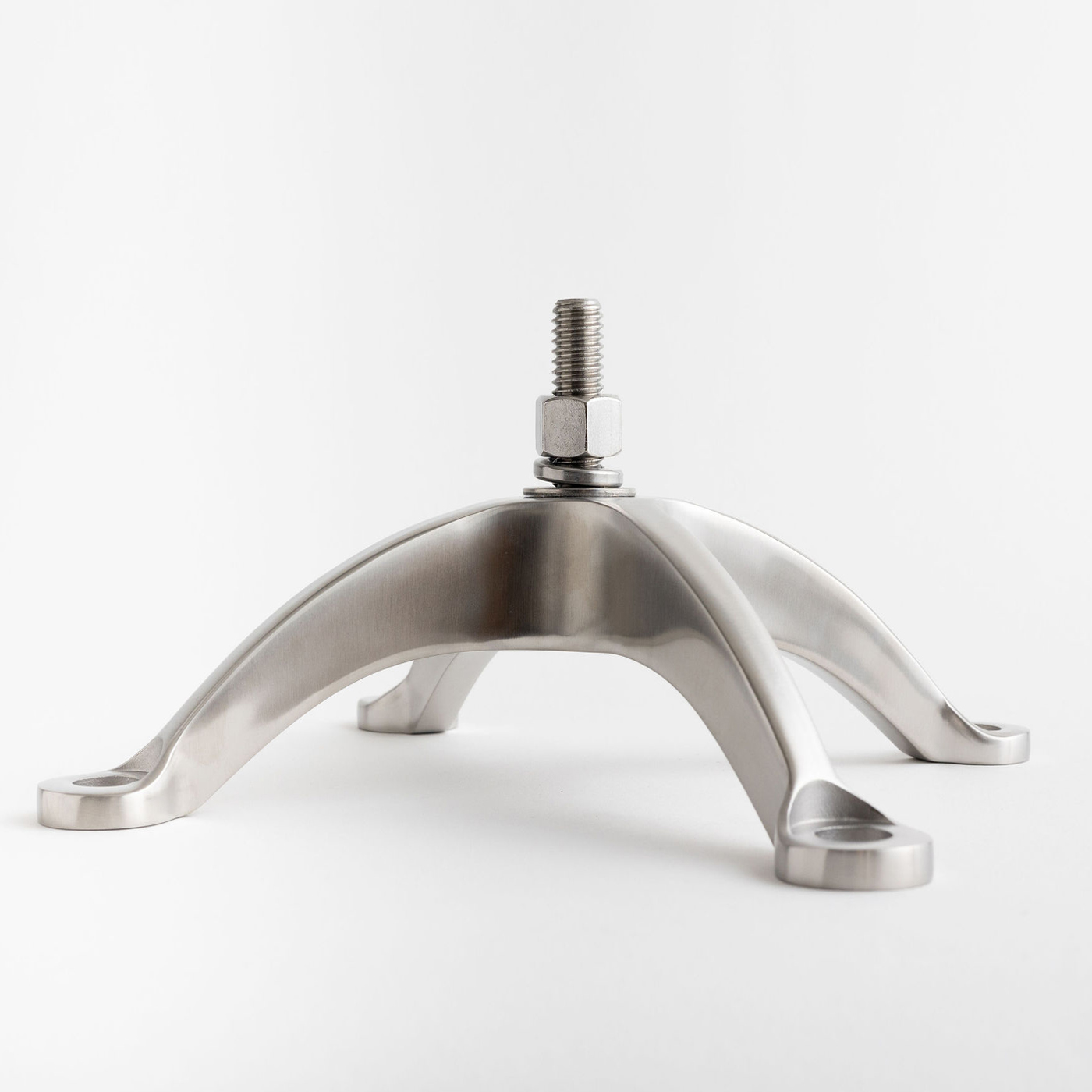

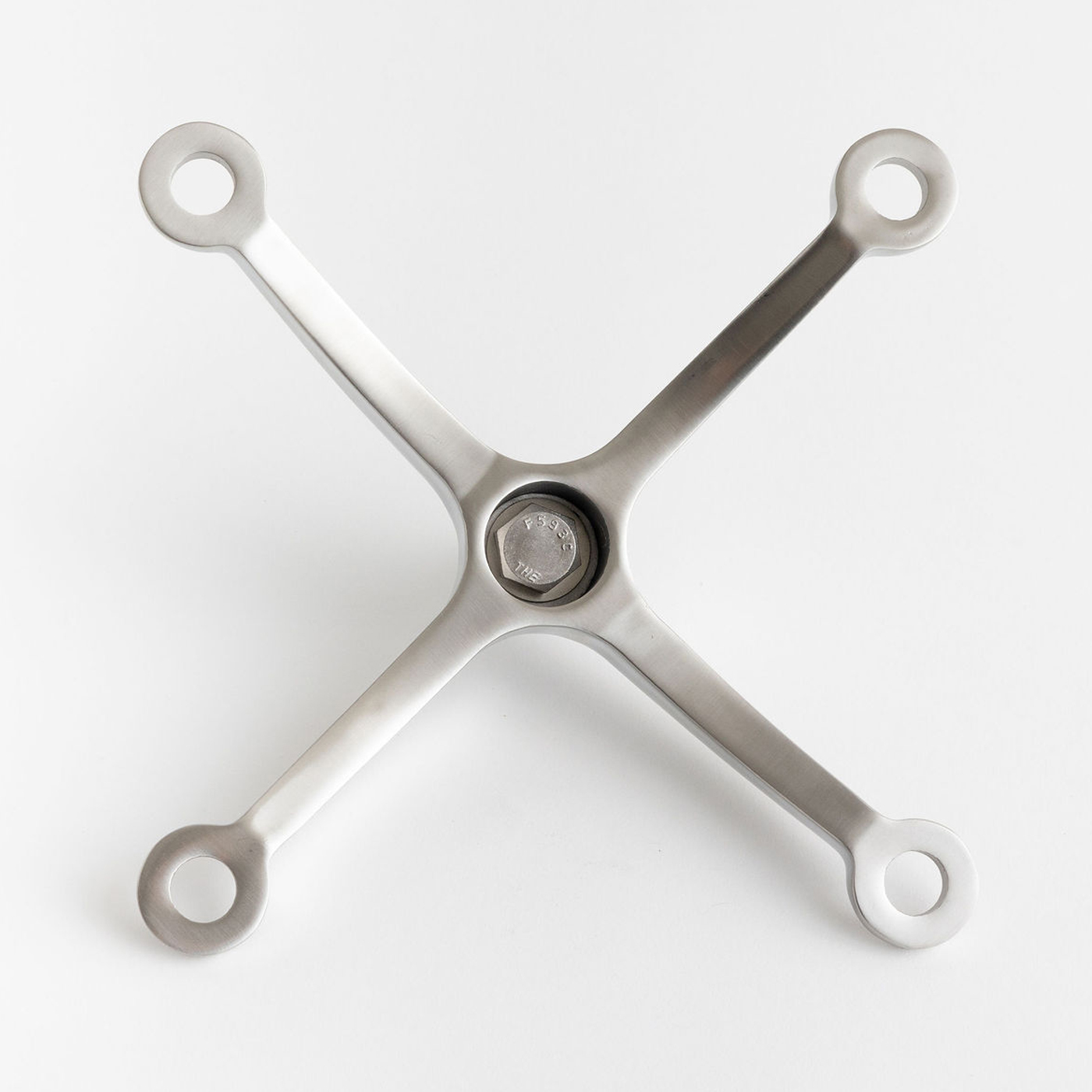

SS204FTNHH6S013 – Heavy-Duty Four Arm (Face-Mount) Spider
When strength, symmetry, and architectural precision are non-negotiable—Stella delivers. The SS204FTNHH6S013 is a four-arm face-mount spider fitting built for high-performance structural glass applications. Its organic curves and balanced geometry offer a subtle, modern elegance designed to blend into the visual plane.

Crafted from corrosion-resistant Grade 316 stainless steel and finished with a brushed No. 4 (320 grit) texture, this spider fitting is tested to withstand 1.5kN lateral and 3.7kN tensile loads per leg. It mounts securely to concrete, steel, or wood substrates from 6 to 13mm thick, using a provided M16 x 50mm hex bolt with washers and spring washer for extra hold.

This model must be paired with four articulating Stella Glass Bolts (sold separately), available in light, medium, or heavy-duty options to match glass size and load requirements.

A LEED-compliant solution with >45% pre- and 95% post-consumer recycled content, this fitting is a sustainable, design-forward choice backed by a 2-year limited warranty.

Key Features:

• ✅ Four-Arm Face-Mount Design for even structural load distribution

• 💪 High Load Capacity: 1.5kN lateral / 3.7kN tensile per leg

• 🔧 Supplied With: M16 hex bolt, 2 washers, 1 spring washer

• 🧱 Compatible Substrates: Concrete, steel, or wood (6–13mm thick)

• 🌱 Eco-Conscious Build: Over 90% recycled stainless steel by weight

• 🛠️ Custom Spacers Available for fine height adjustments

• 🛡️ Warranty: 2-Year Limited (customizable per project)

SKU: 1187271
Division: 08 88 00 – Special Function Glazing (See drawings here)
Exclusively Distributed by: Stella Glass Hardware
www.stellaglasshardware.com
