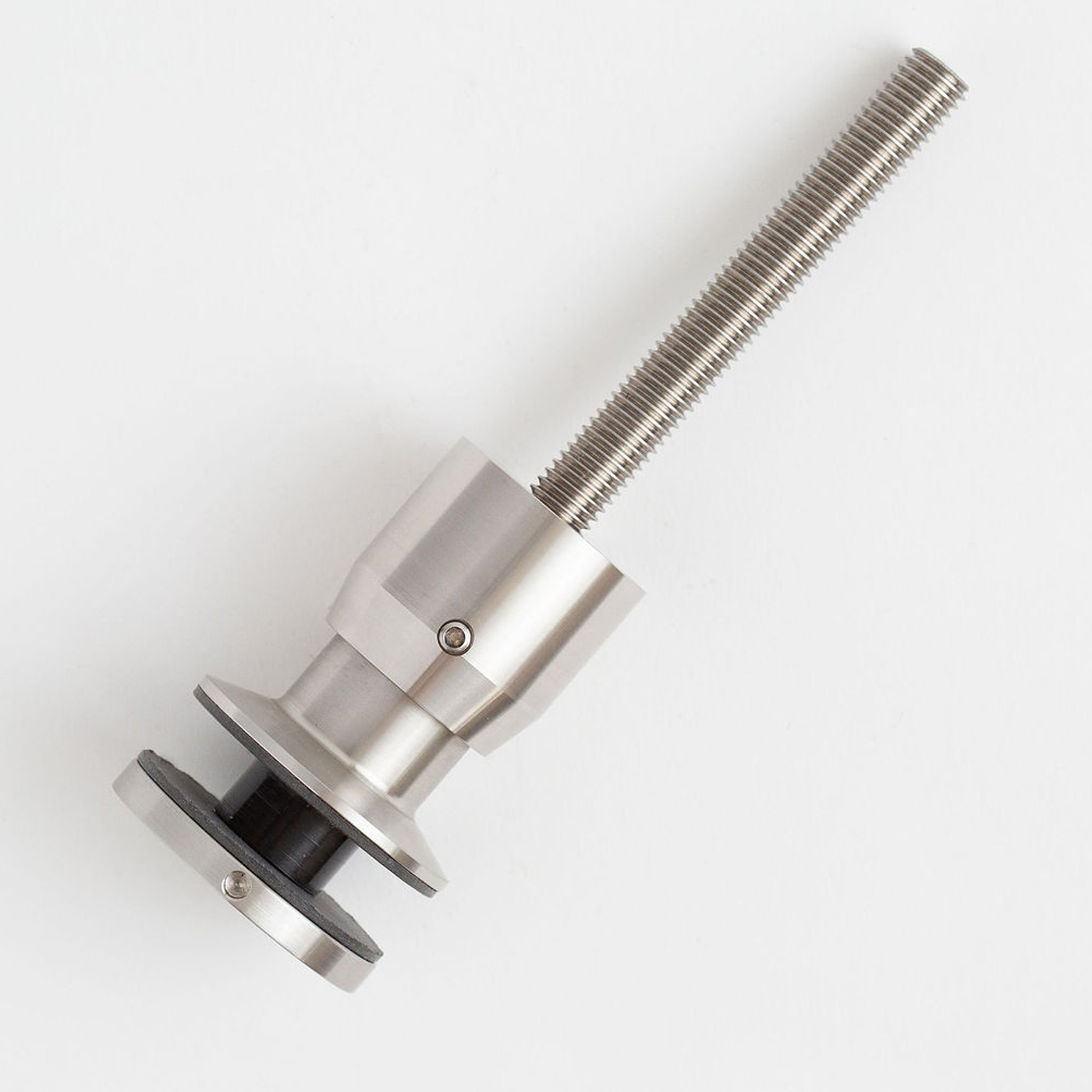

ST503 Adjustable Standoff - Flat

The stand-off that started it all!

The ST504 was our original stand-off, created to offer just a minimum of space between face glass and mounting surface (11.6mm or ½” to be exact).

You’ll be steered to select this stand-off over our other ST503 (adjustable stand-off on this site) for any one of the following reasons:

• you're looking to match an existing non-adjustable stand-off

• you’ve got a tighter budget for parts and you’re sure that your mounting surface is even – you don’t need the adjustability features of our ST503

• you have complete access for installation – this product doesn’t offer a front-mounting option

• you have a space constraint between underside of glass to the mounting surface – this product offers the closer connection of all our stand-offs with just of 12.5mm [1/2”] between glass and mounting surface

When you order from Stella - you get the complete assembly.

This stand-off is supplied with all the components you need to install – fibre gaskets, ferrule bushing and your chosen attachment to affix this stand-off to your mounting surface.
We even supply this bracket with the specialized 4mm Pin Spanner tool you need to tighten the front face during install (see tools HERE)

NOTE: Pricing is for part as shown with no modifications.

More about product mount options:

• See all product drawings, technical info and install guides here

• Or a quick guide is below:

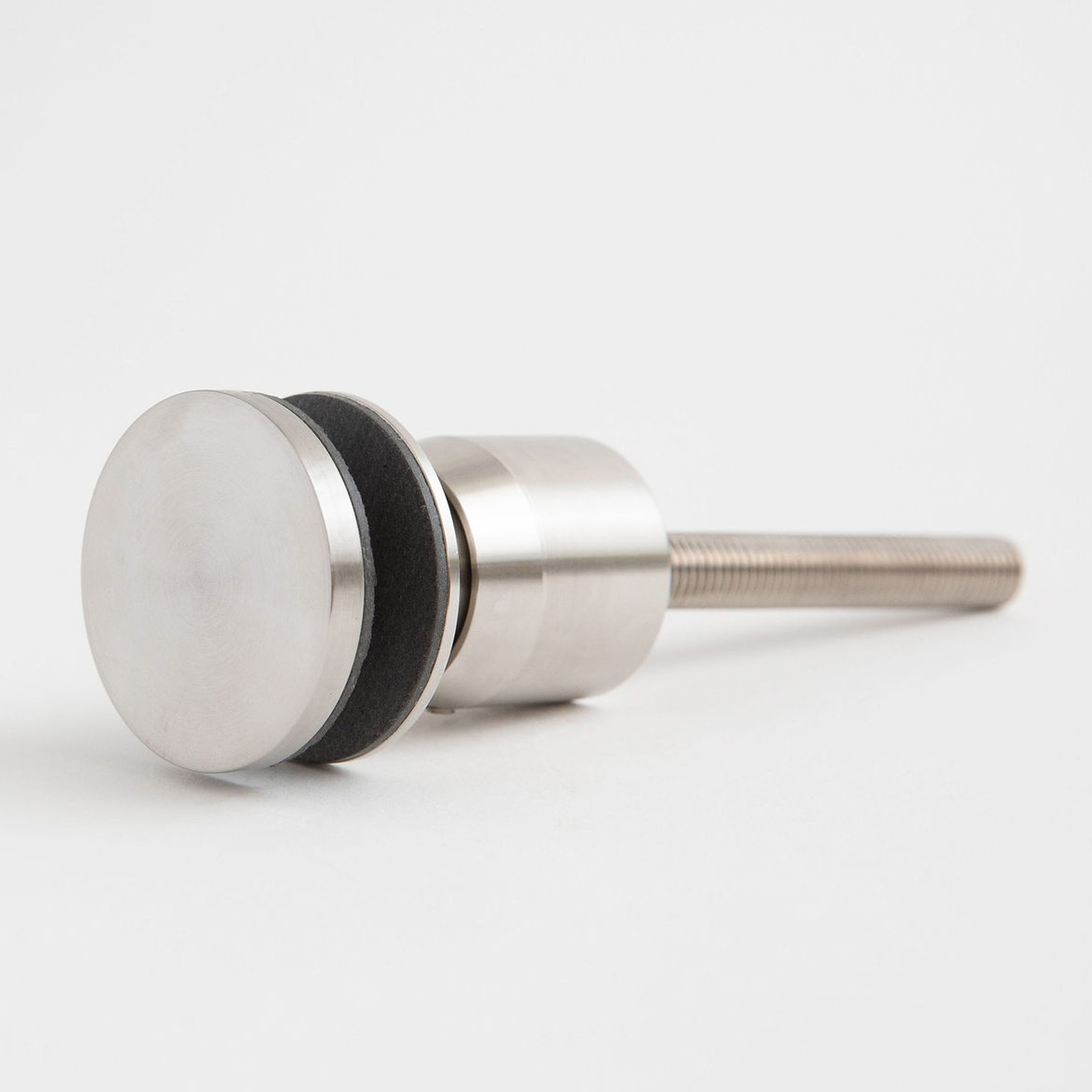

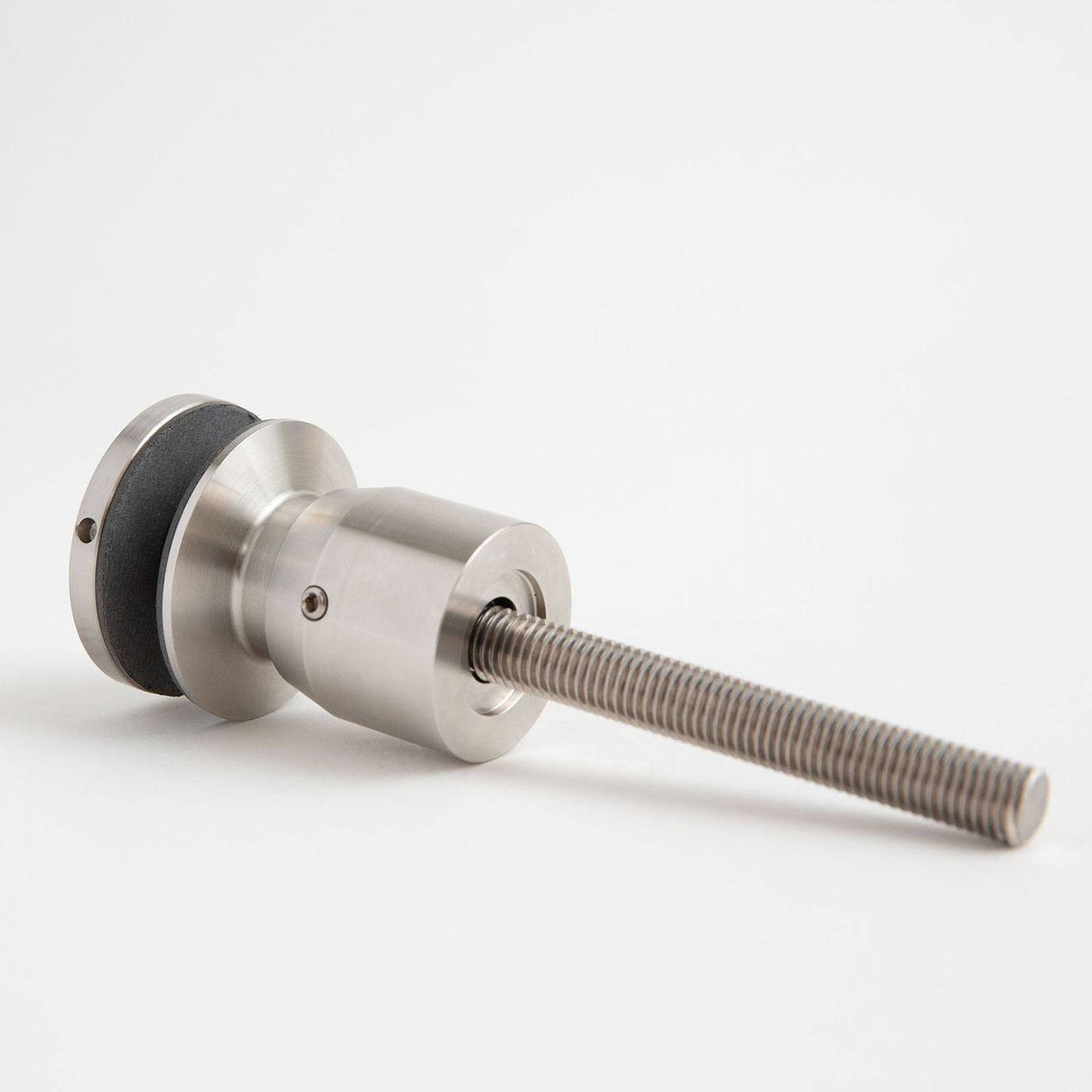

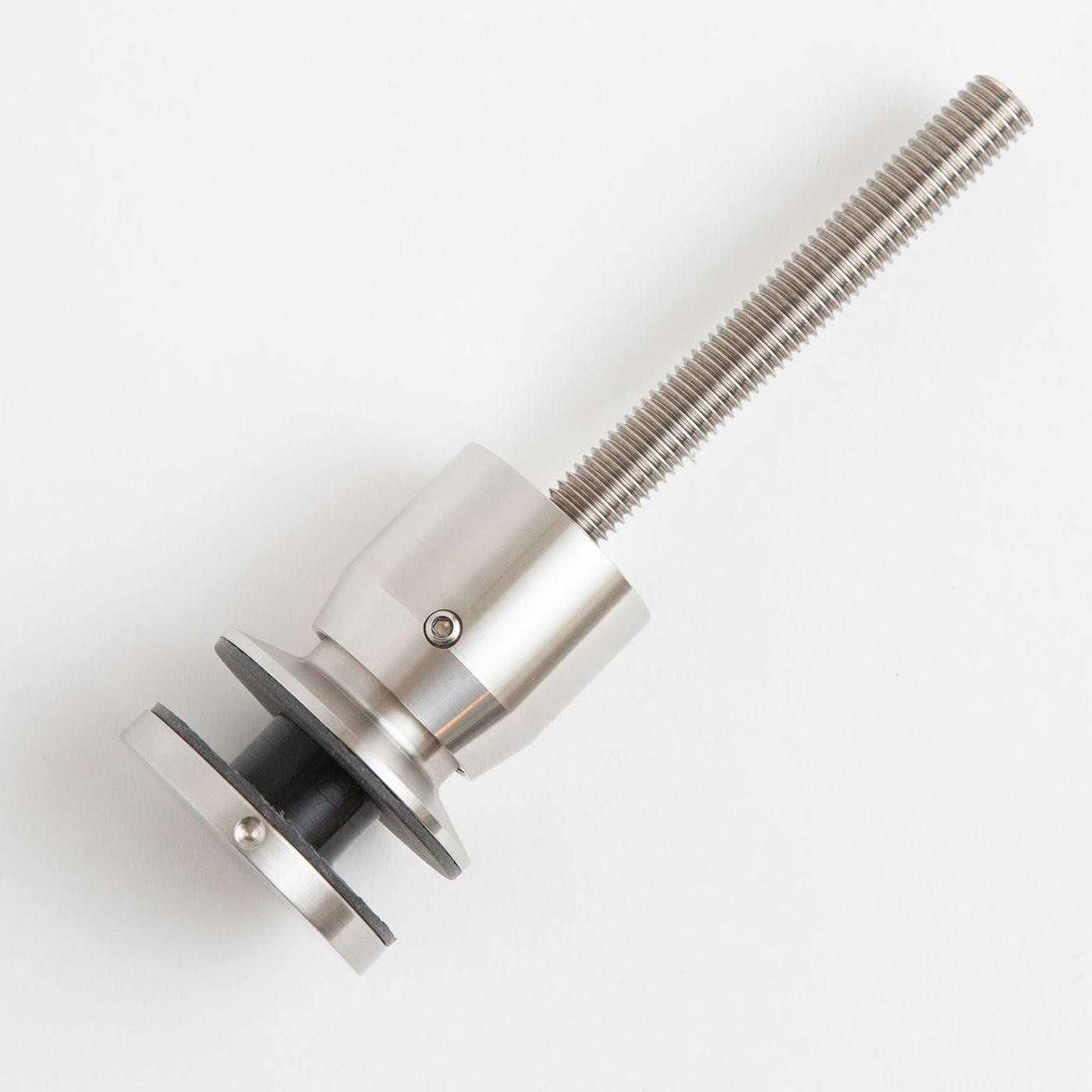

  • Concrete -  Supplied M12 Stud @ 125mm [5"] Long (based on 21mm [7/8"] glass thickness)

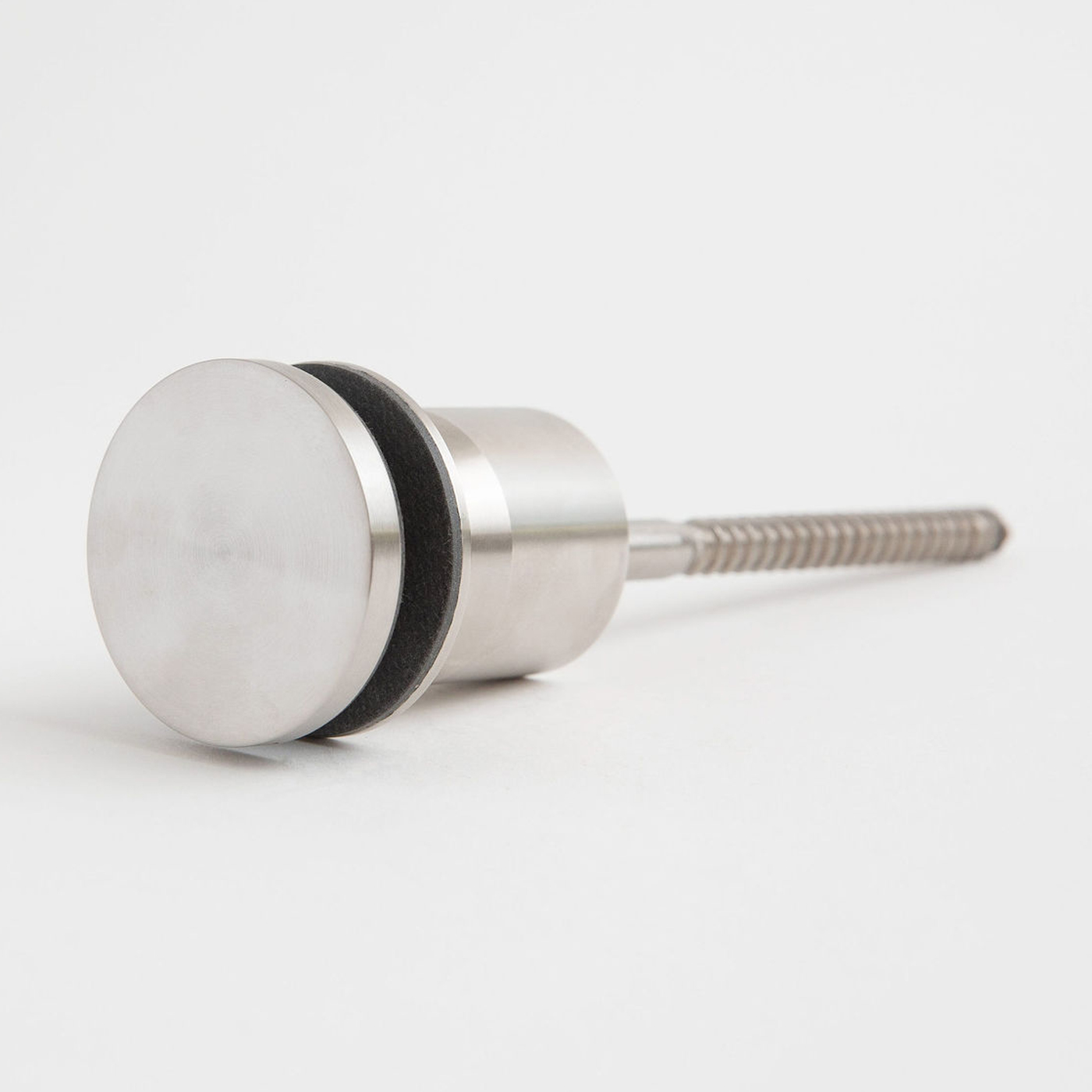

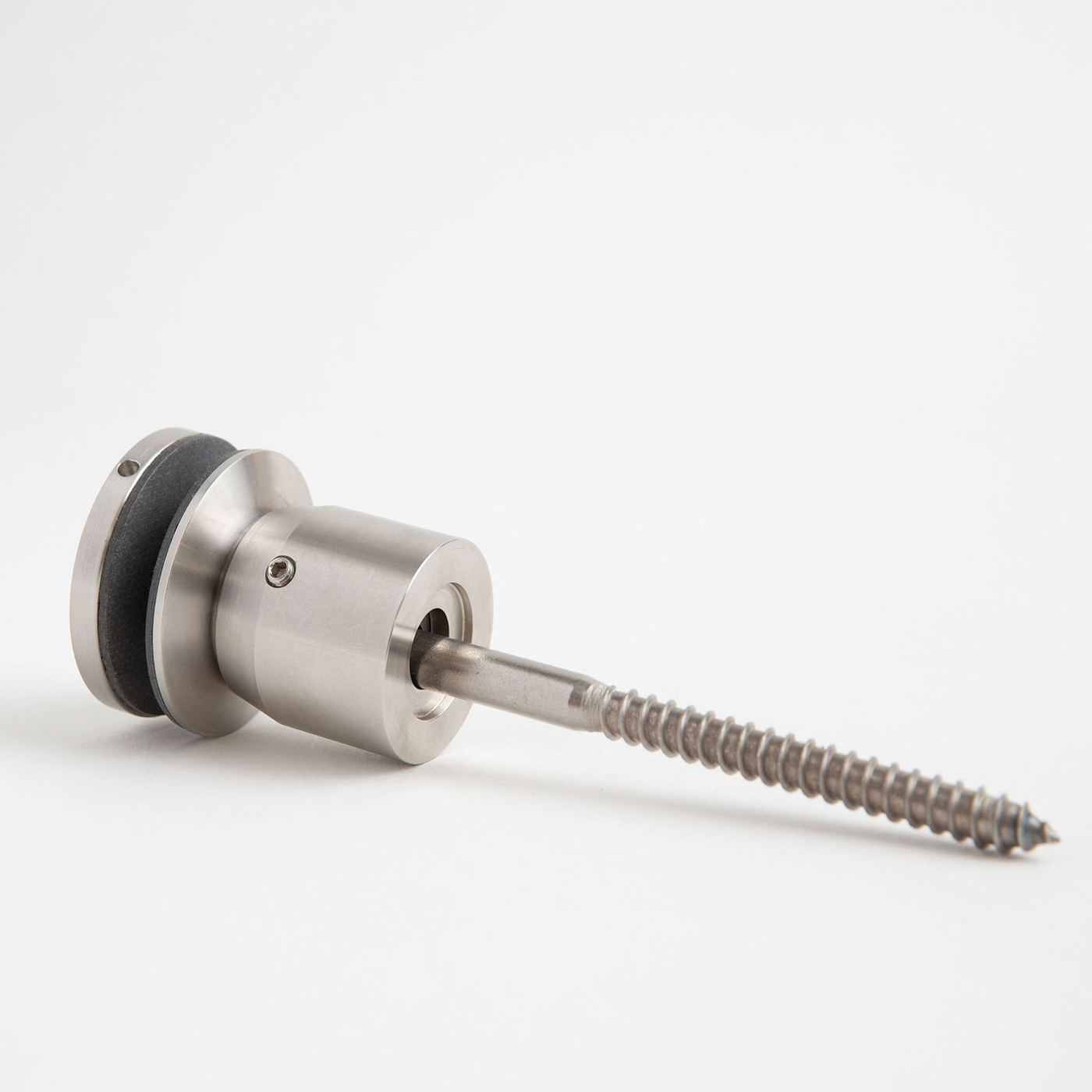

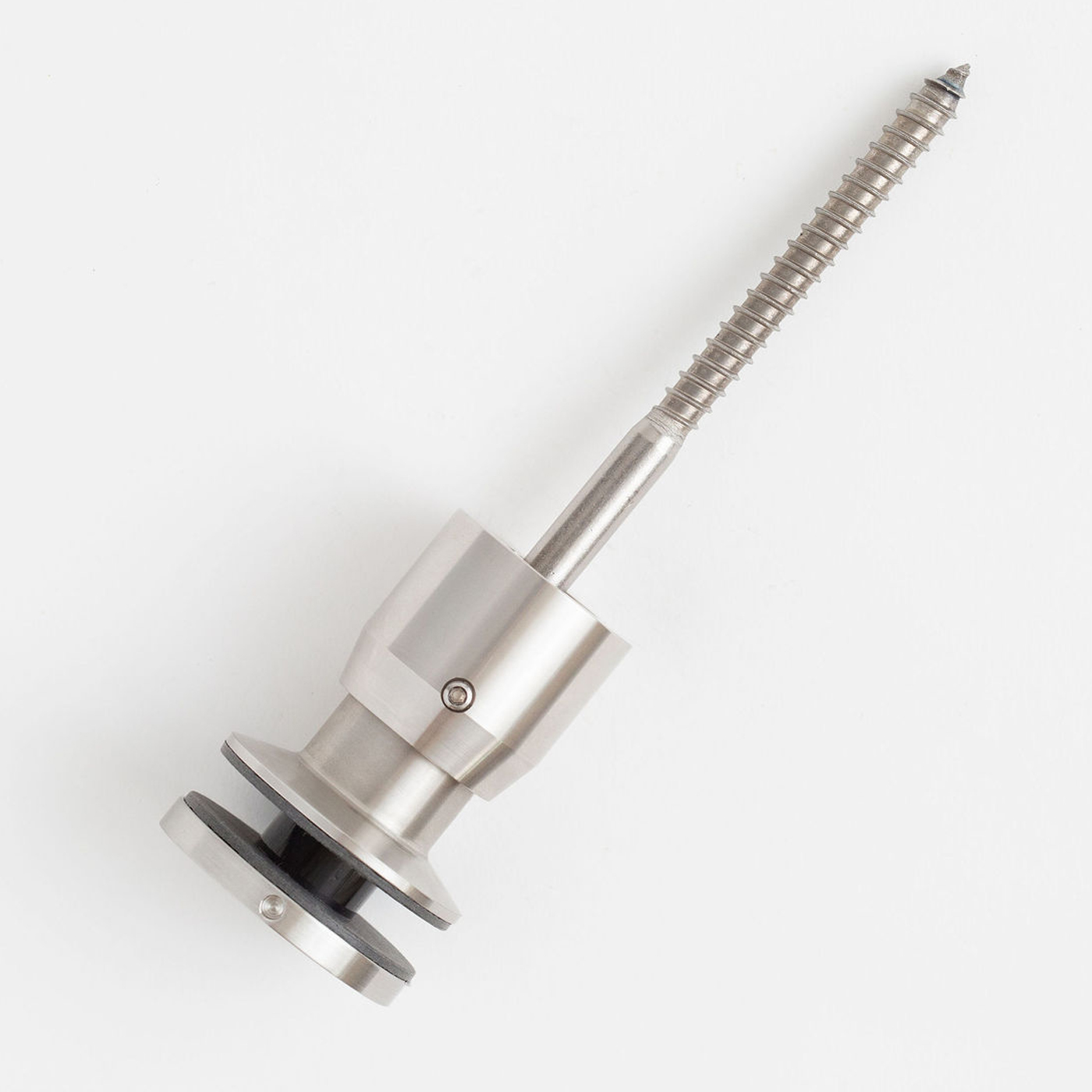

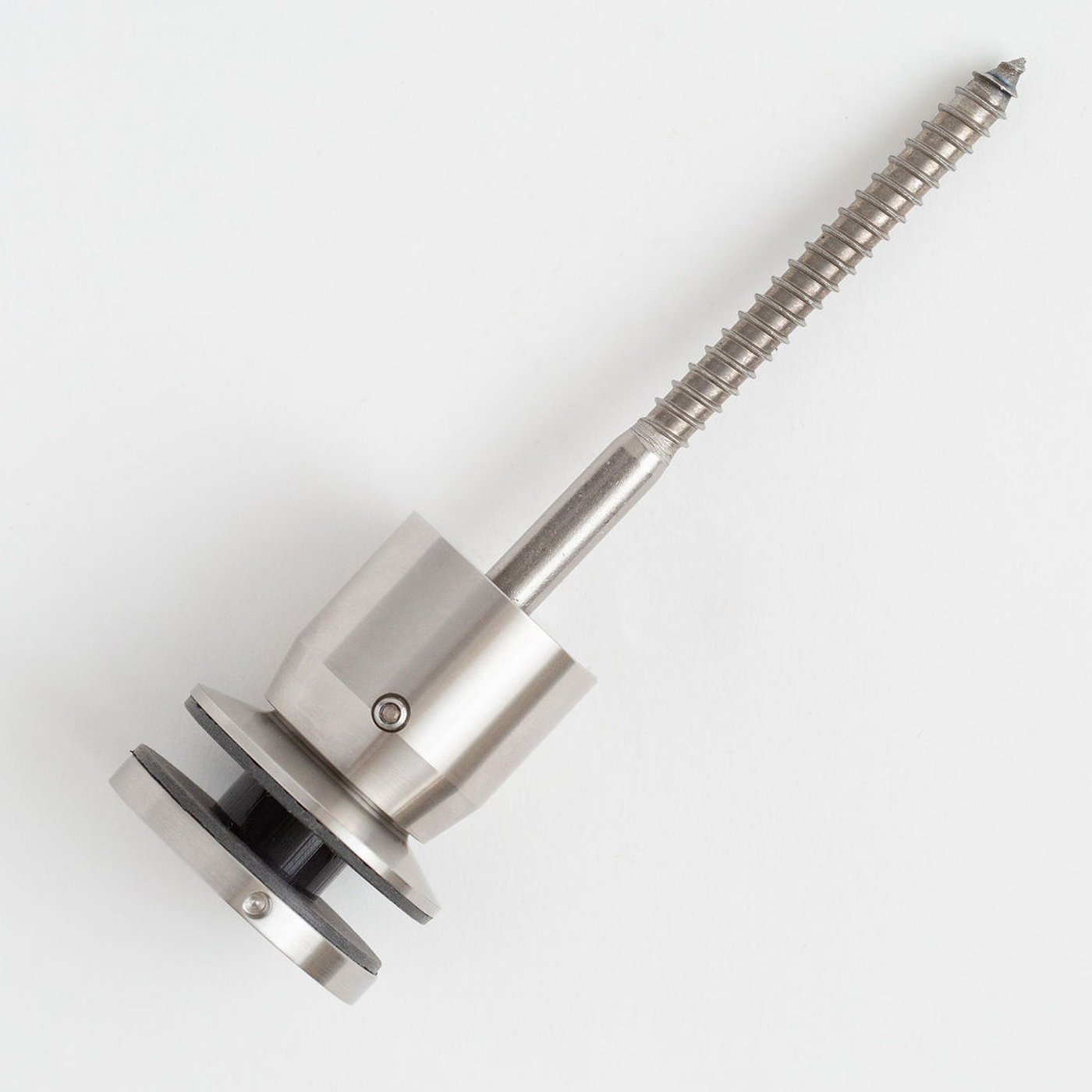

  • Wood -  Supplied M12 x 125mm [5"] long hanger bolt

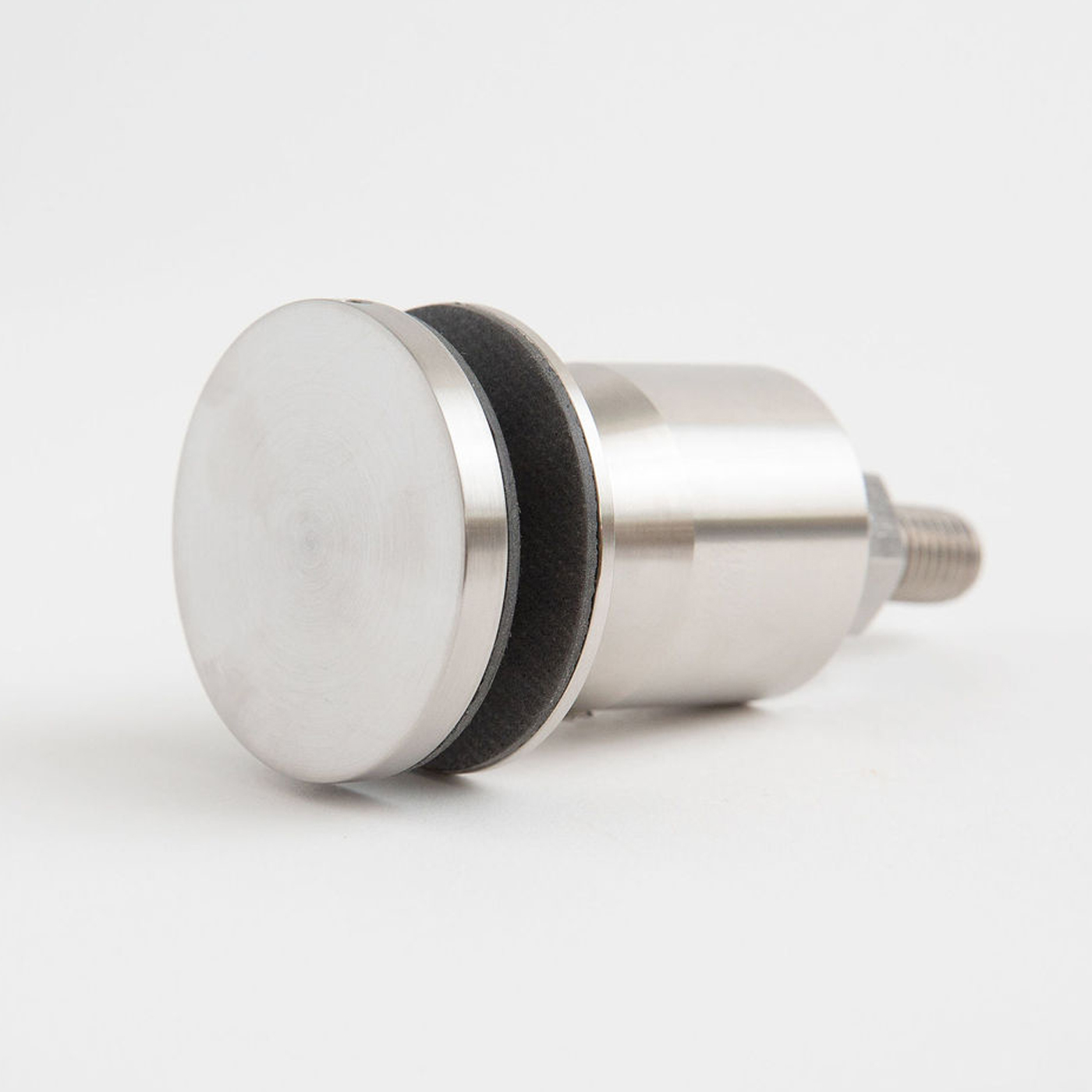

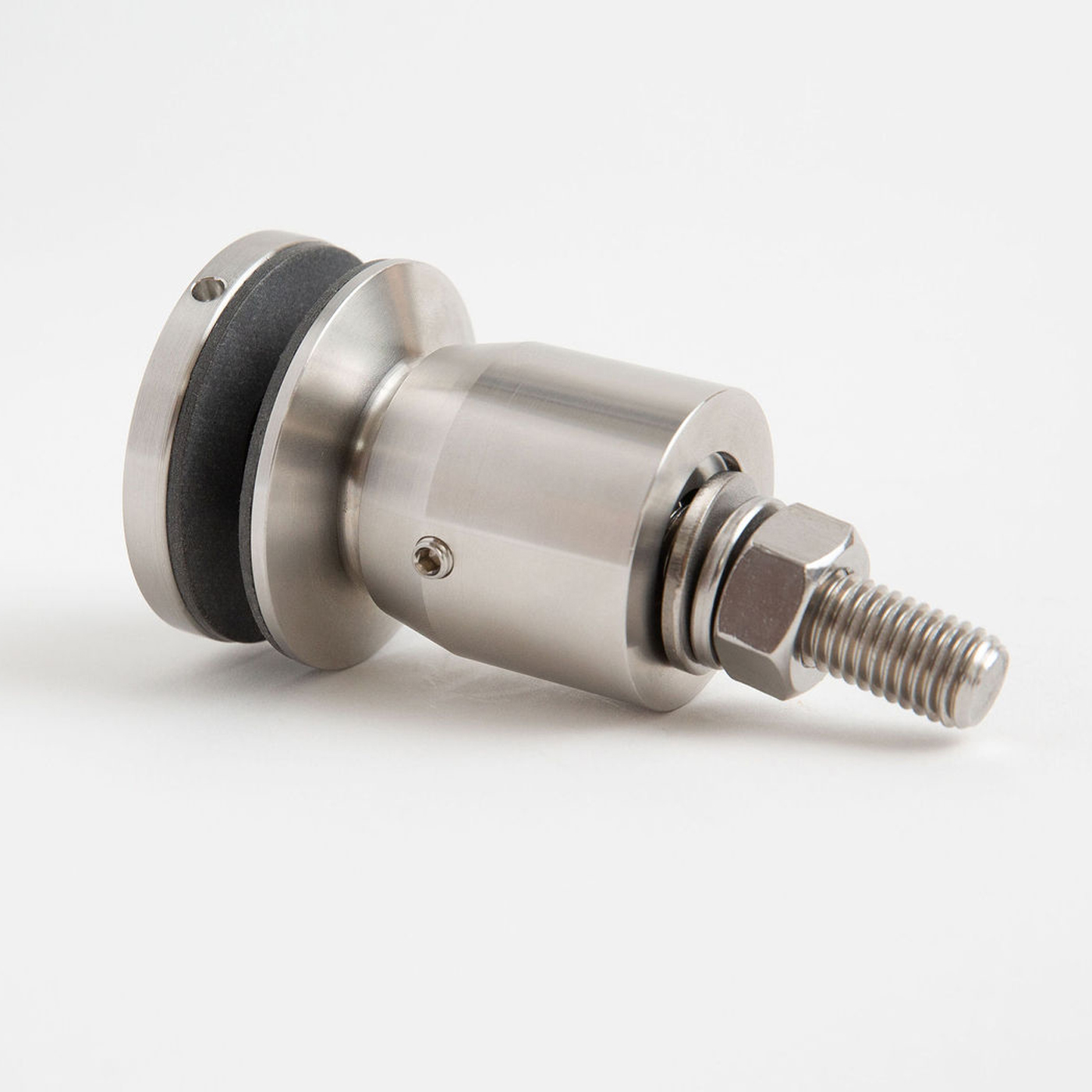

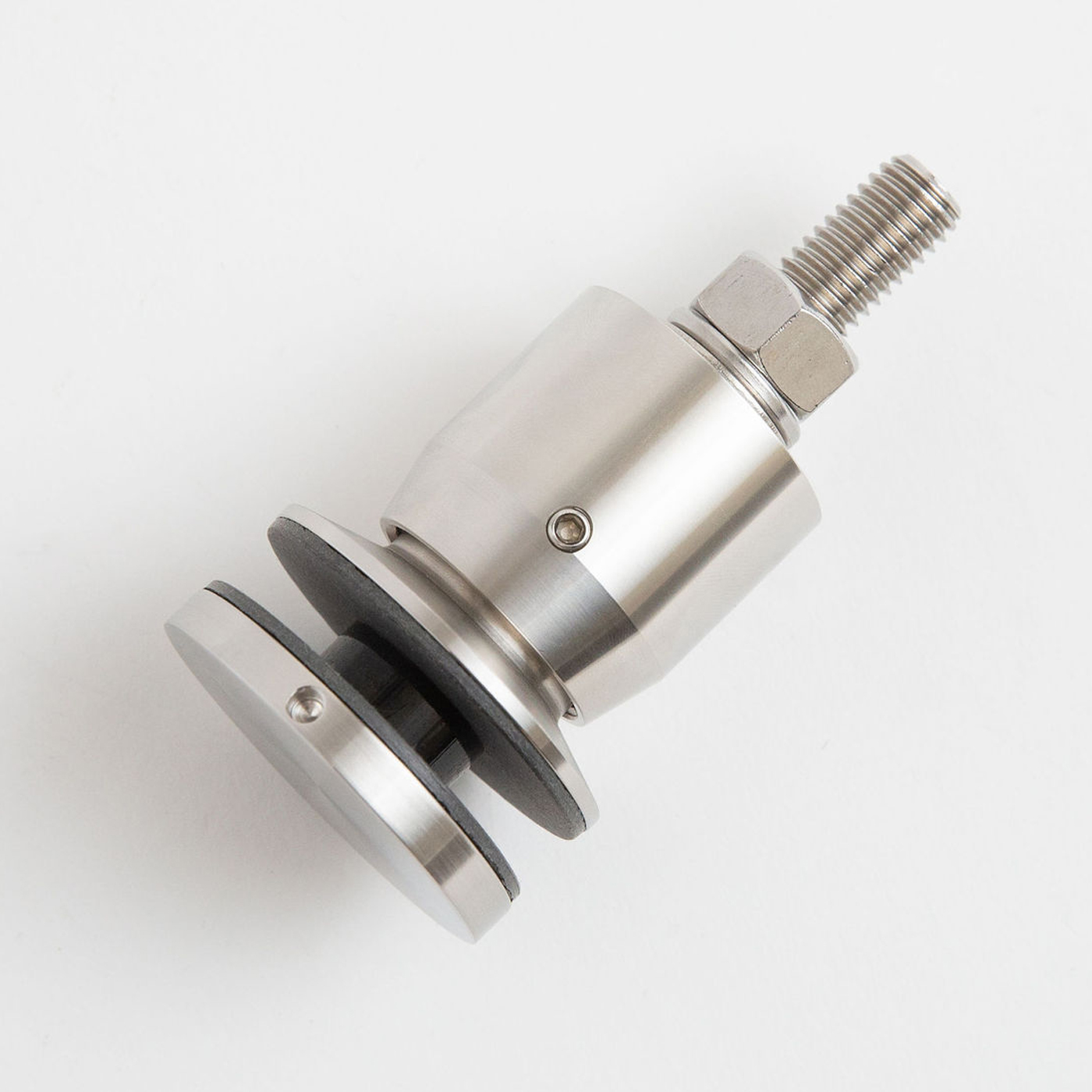

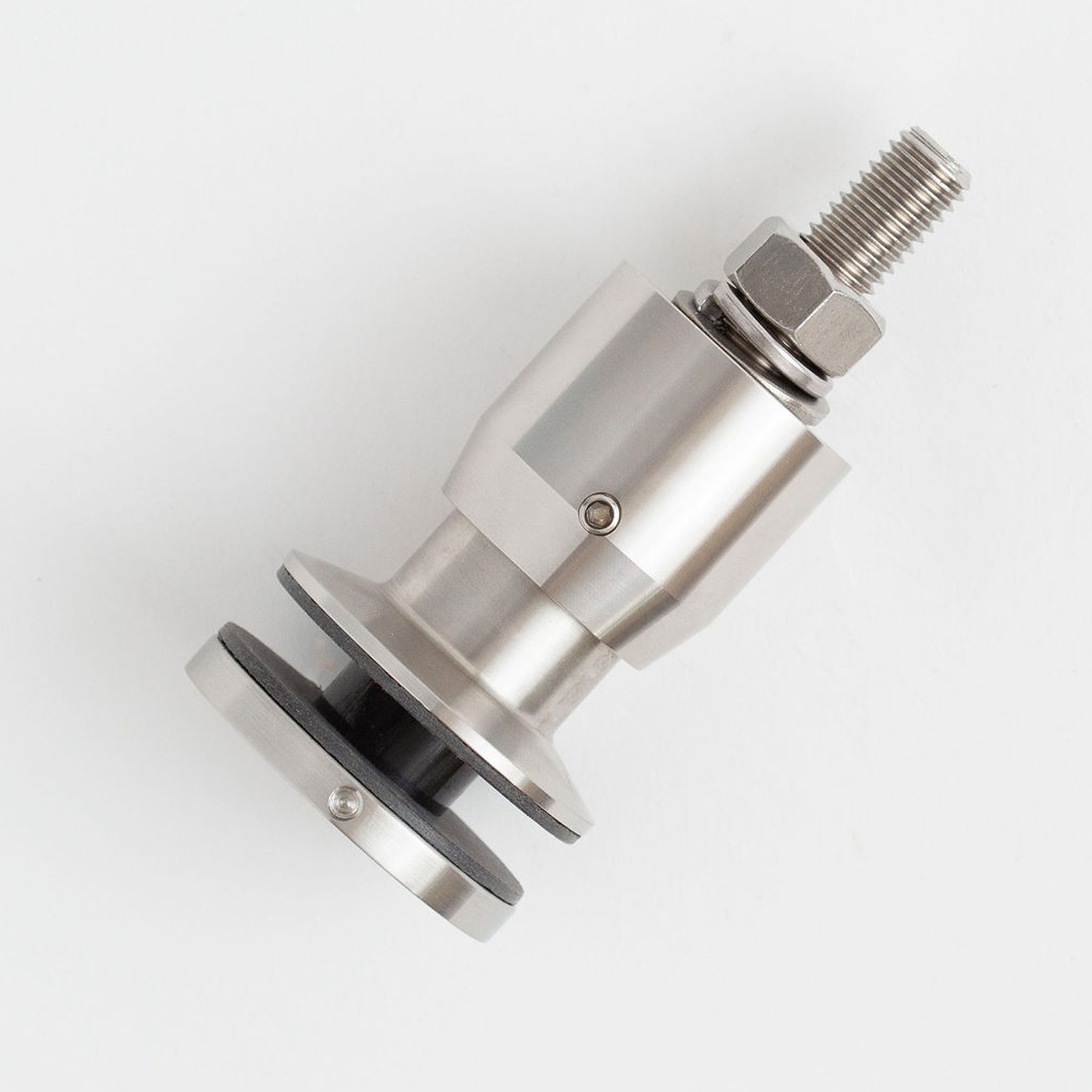

  • Steel (comes with hex nut) -  SHCS M12 @ 45mm Lg., Works for 0.5 to 12.7mm [3/8" to 1/2"] thick steel

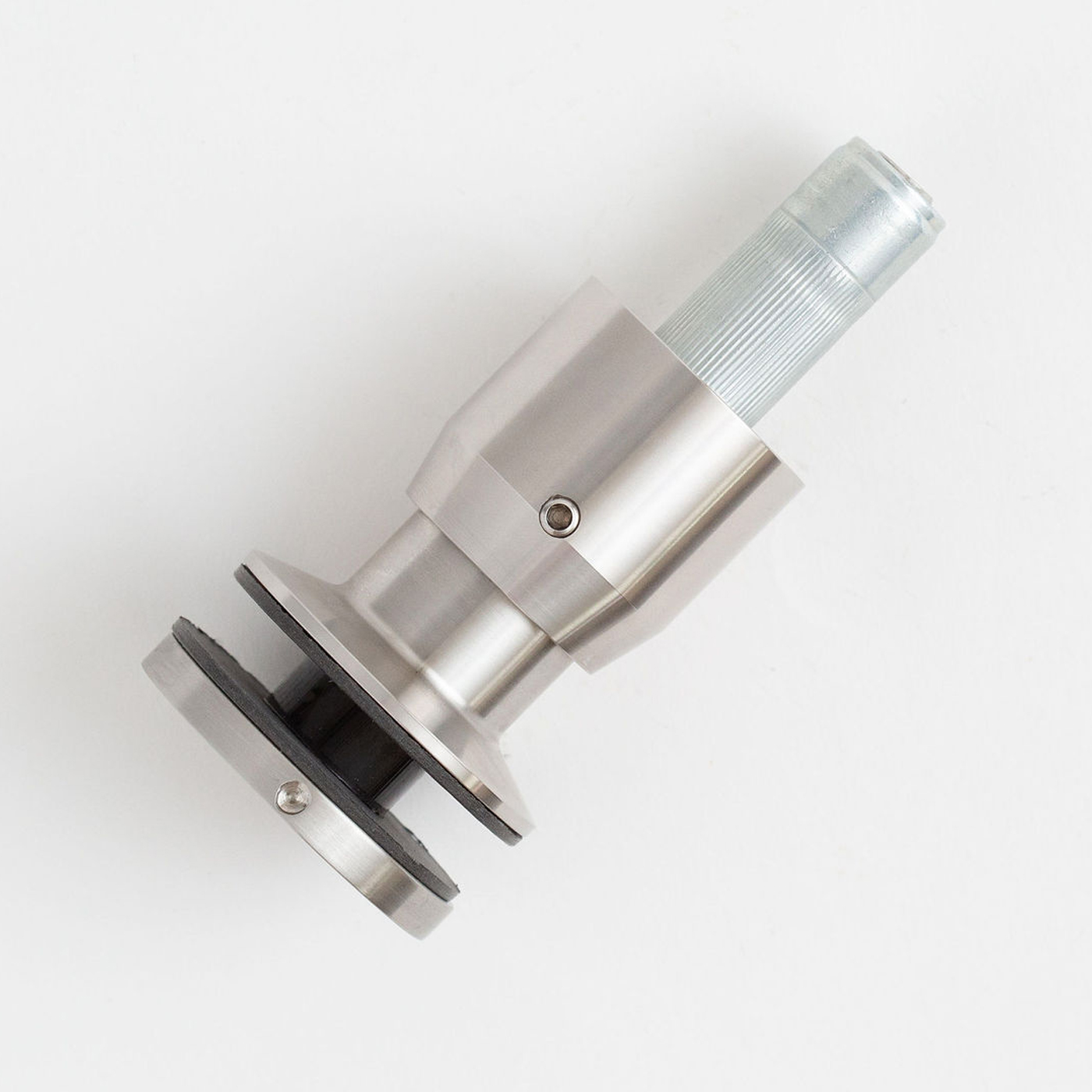

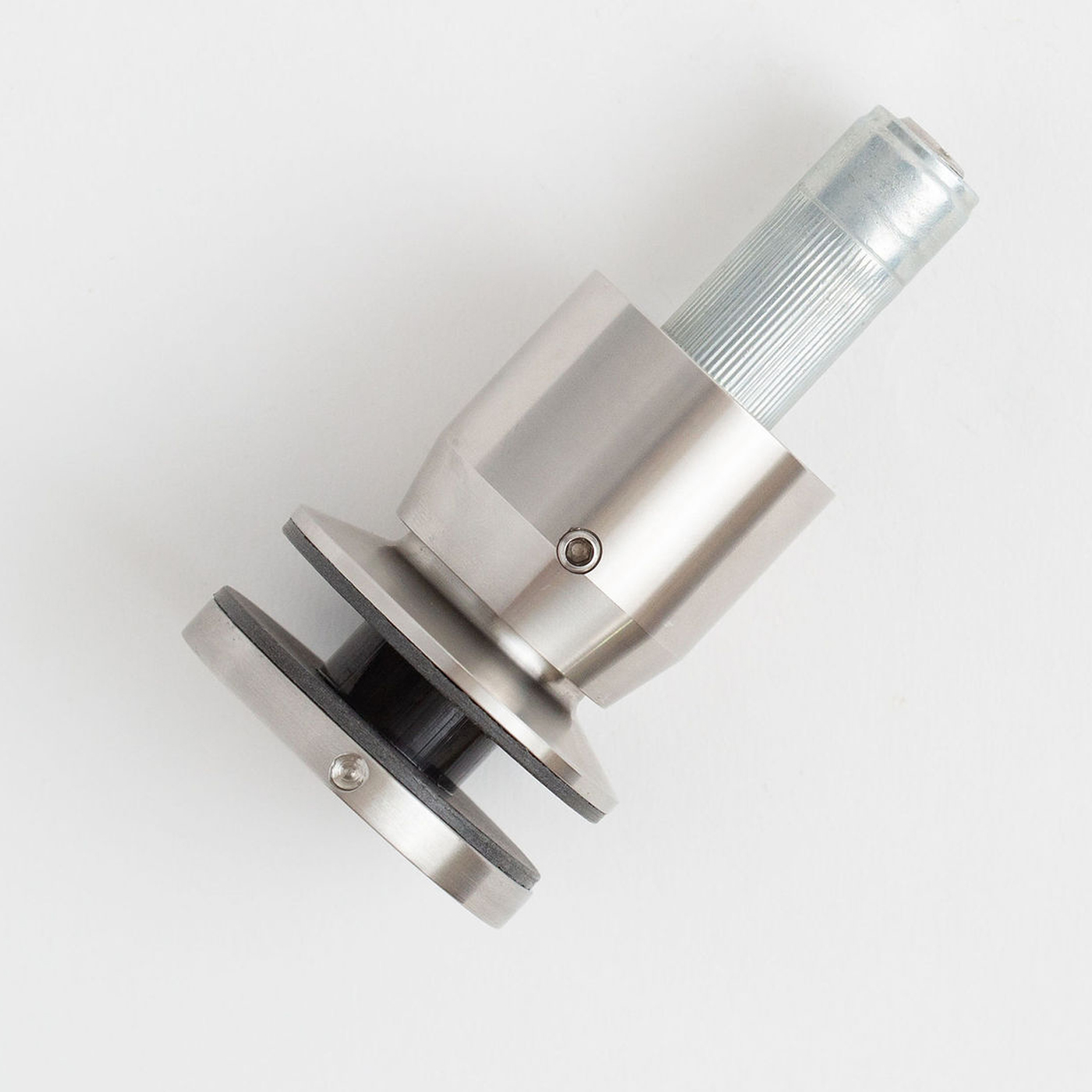

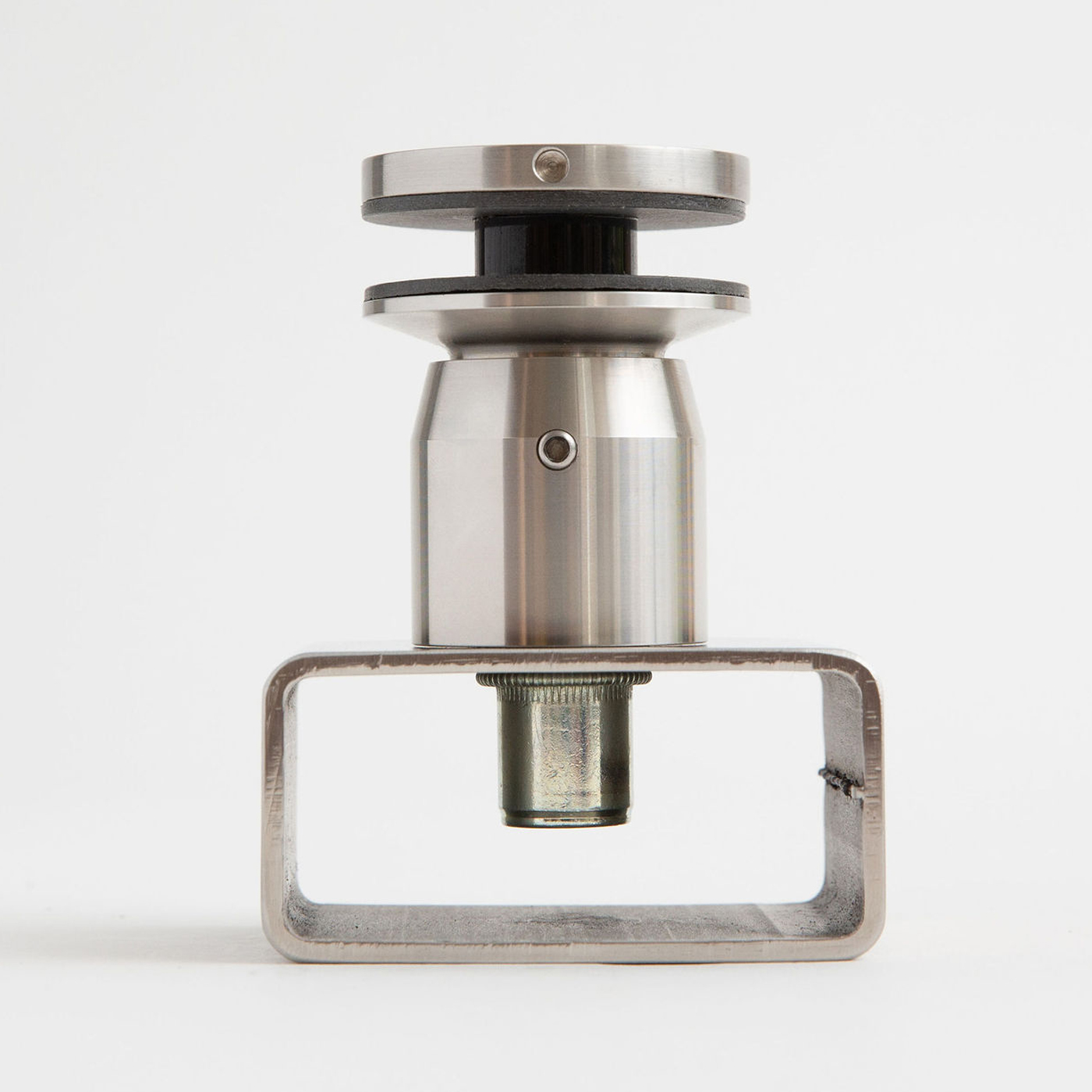

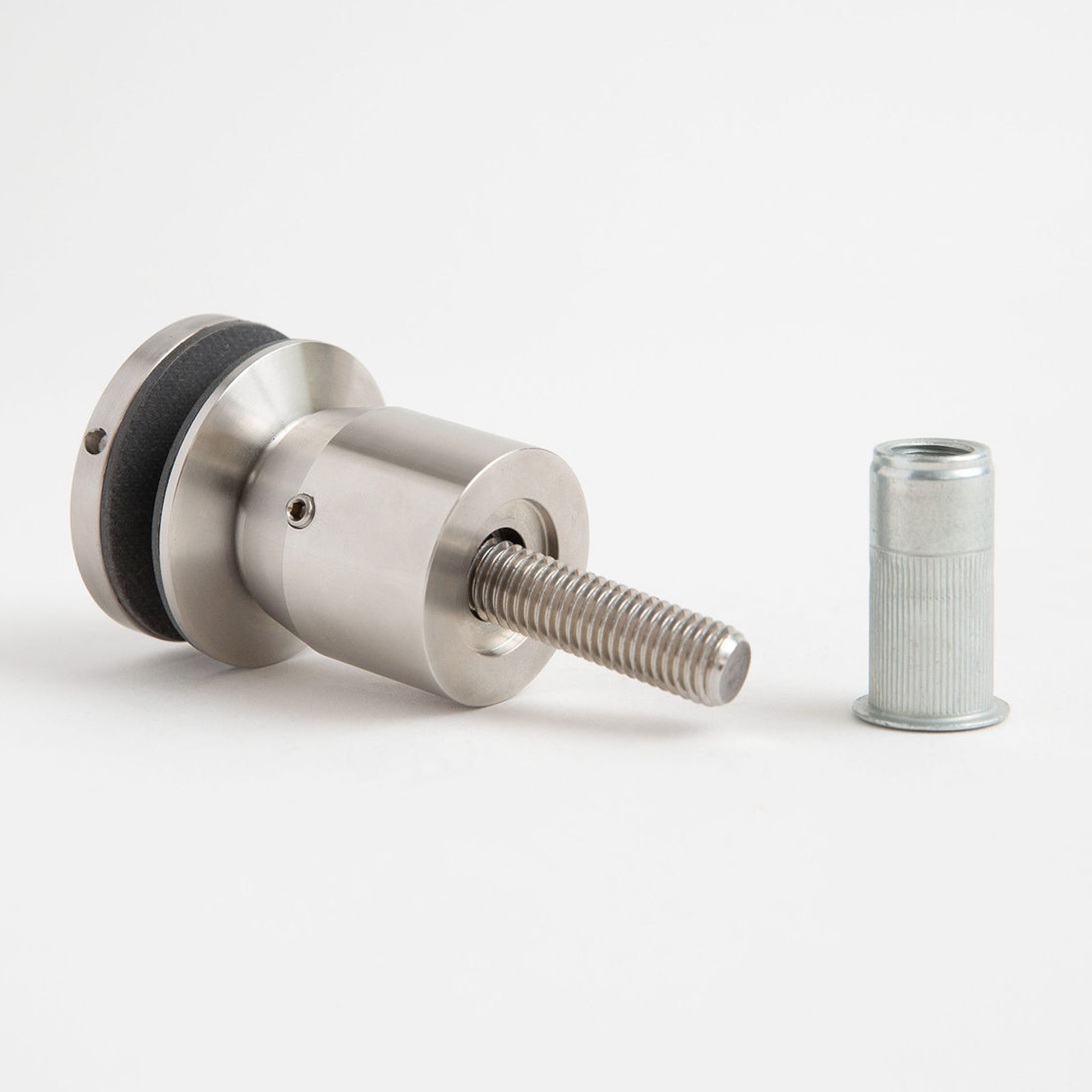

  • Nutsert M12-12.7 for Thin-walled HSS -  Works for 8.9 to 12.7mm [3/8" to 1/2"] thick steel & SHCS M12 @ 60mm Lg.
